So school is finally over, the weather is finally starting to turn around and everything is looking good for a new build!

So to start things off here is the box I will be building the over all sizes are 30x36x17.5, this box is a master piece of shizzzon designs! (look him if you need help with a weird install in a small spot!) he cubics before displacement are like 7~ and after 6.5~ and tuning is 40hz (may change in the future)

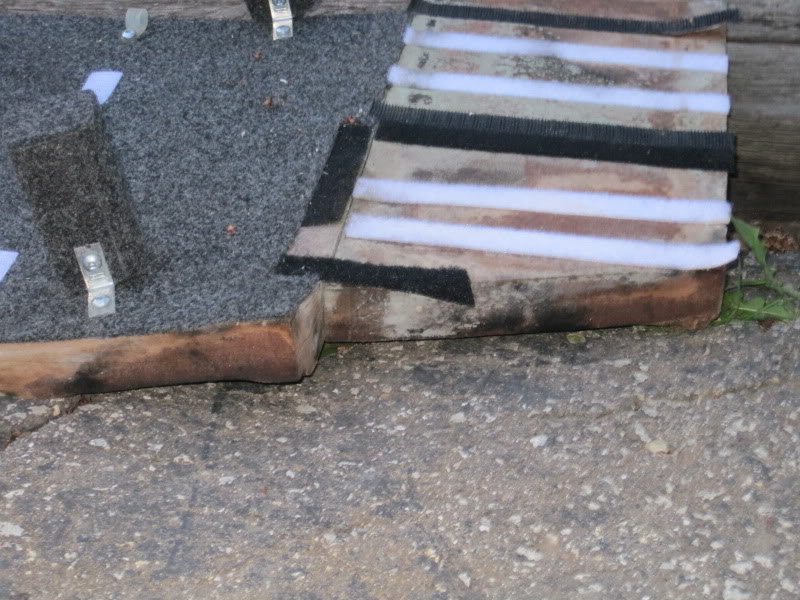

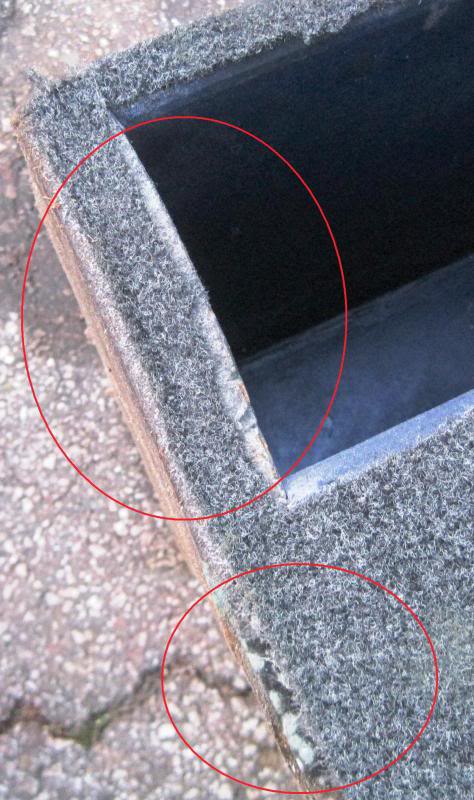

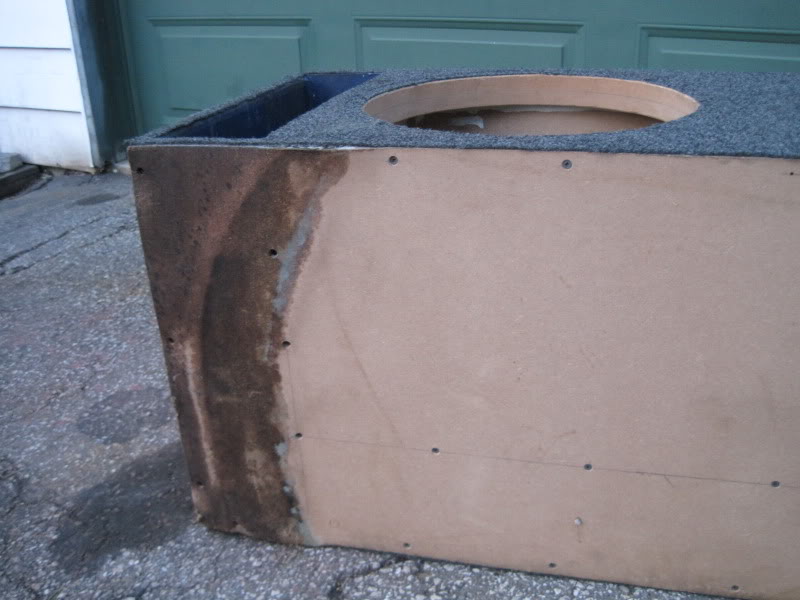

Now here is my old box and as we can see the mdf soaked up the water like a sponge lol! so needless to say i had a leak issue also if you are interested here is a link to my old build.

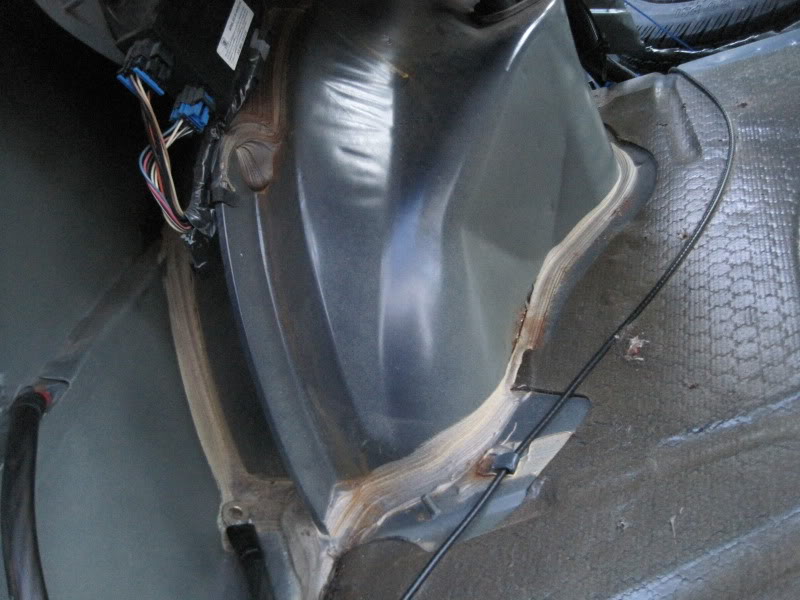

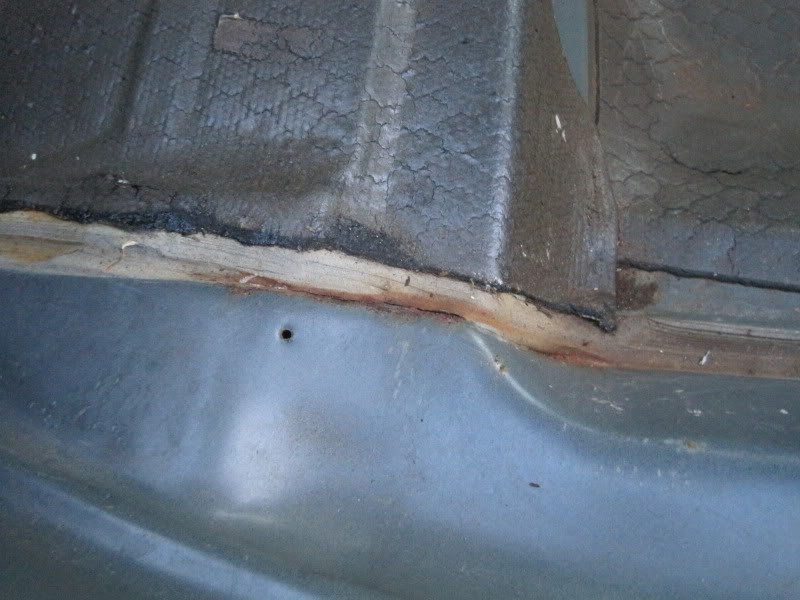

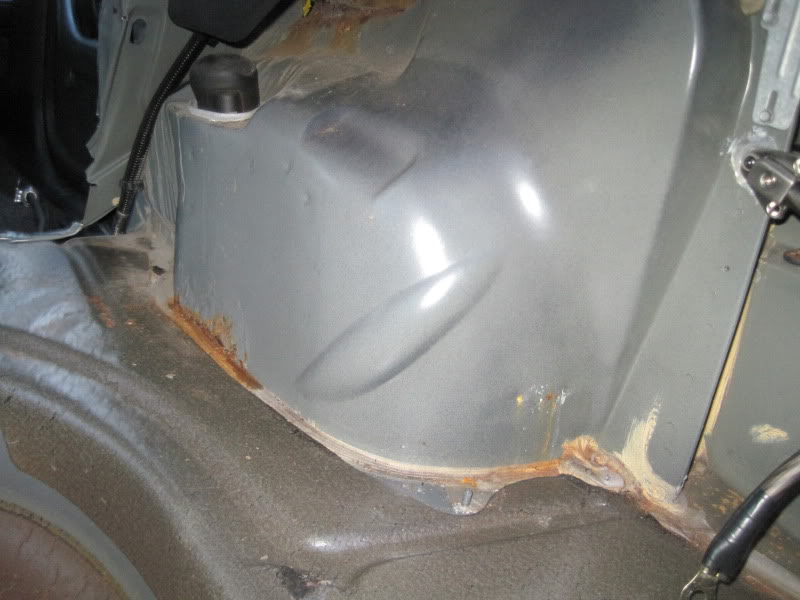

Onto the bad parts in the trunk, also not shown the tail lights were leaking BAD and i had to reseal those puppies fast with a sealing agent!

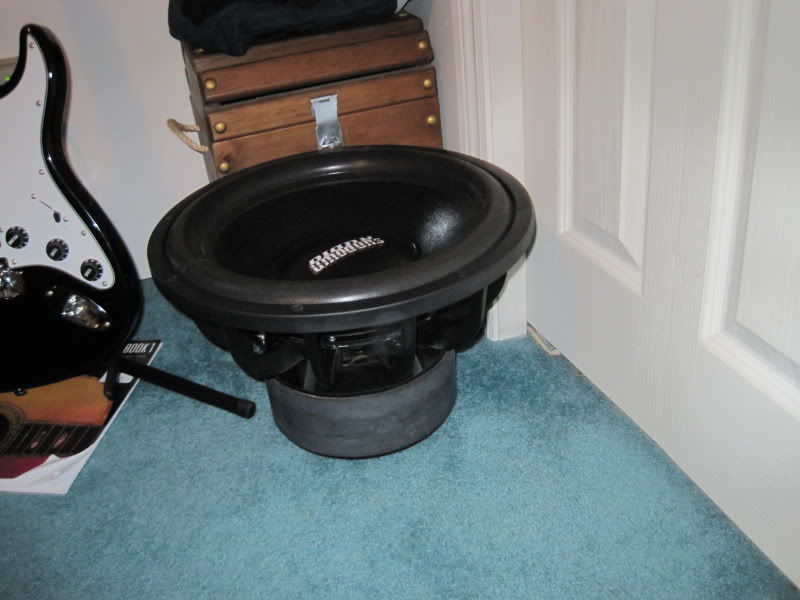

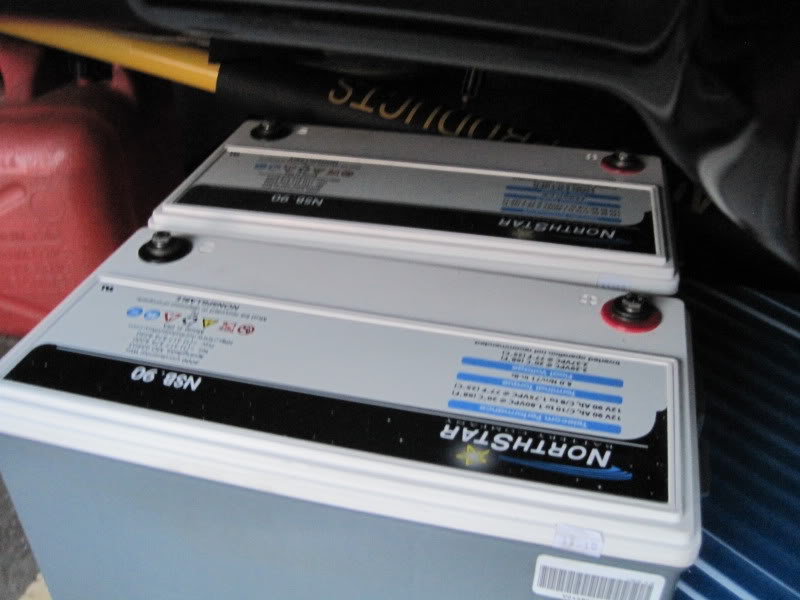

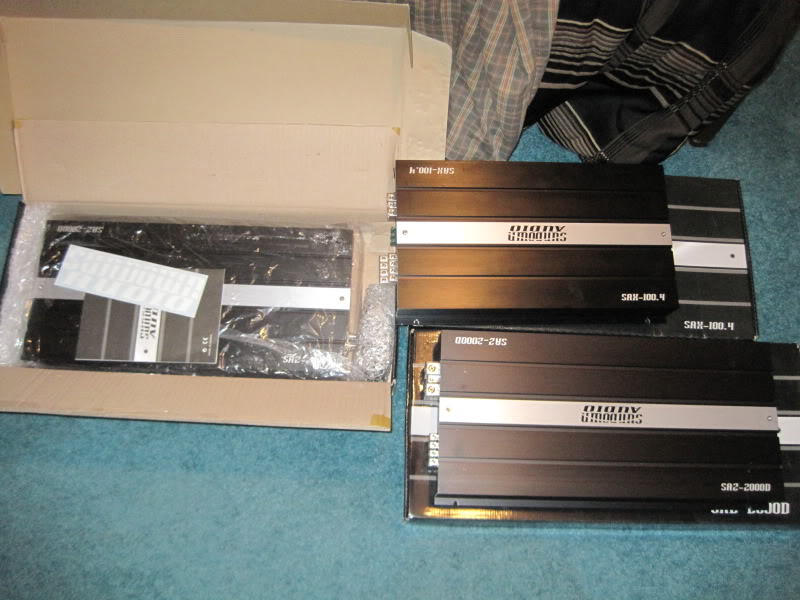

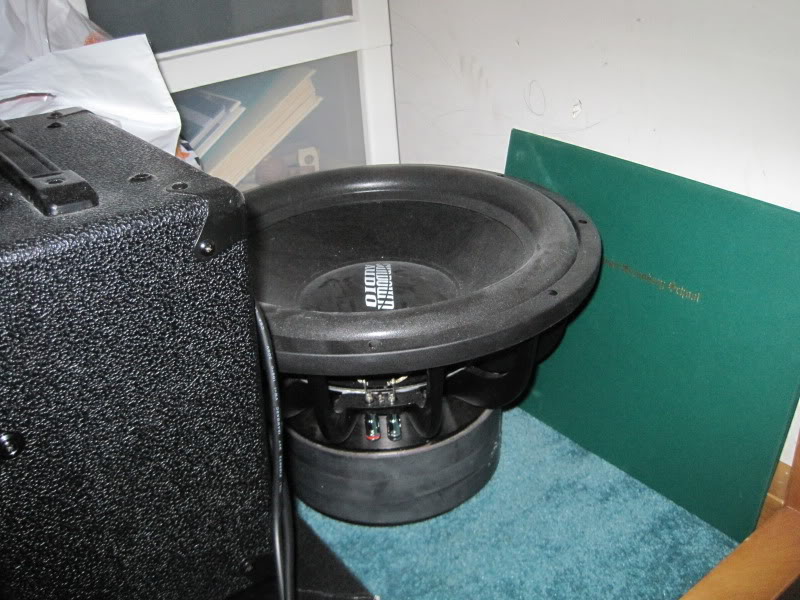

Next item to talk about is the equipment which will be going in!

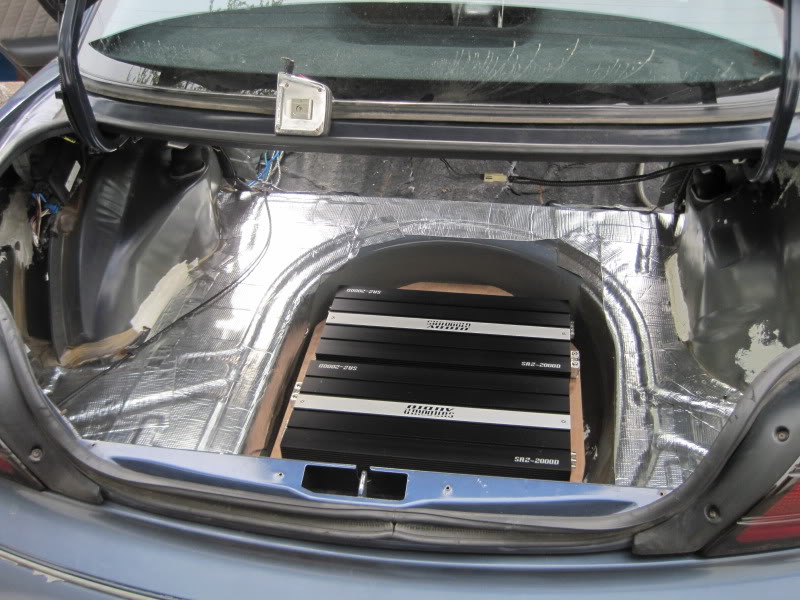

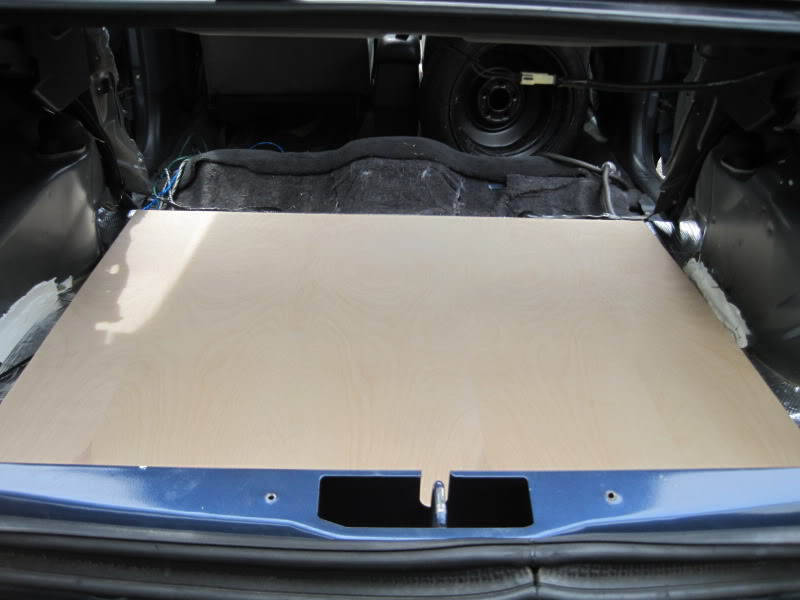

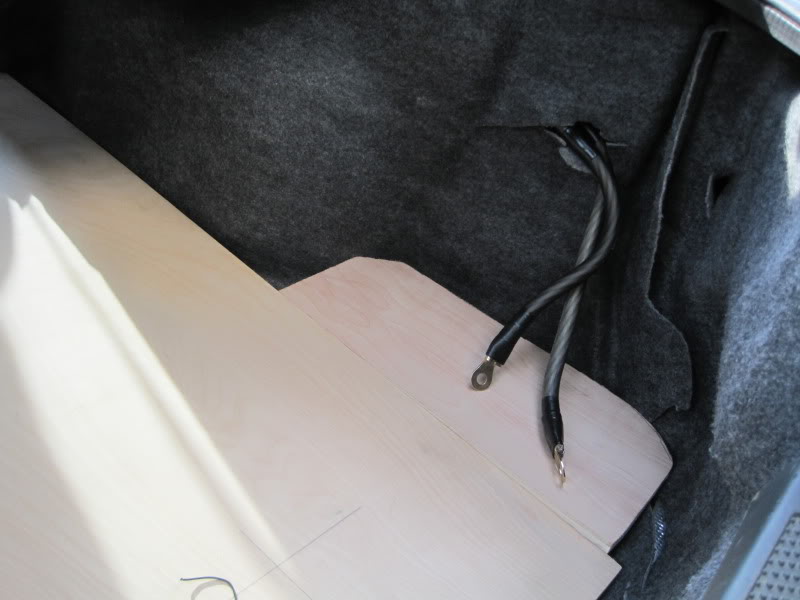

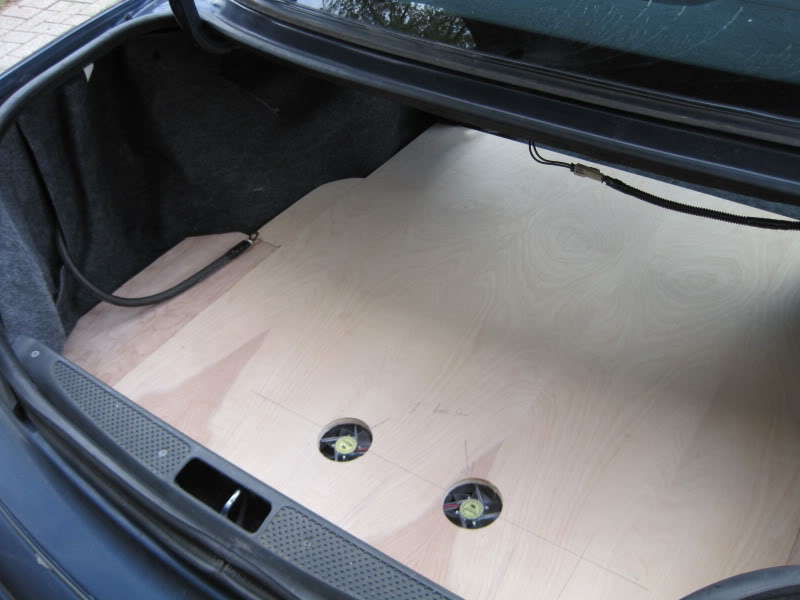

I also deaded my trunk and installed a false floor! take a look

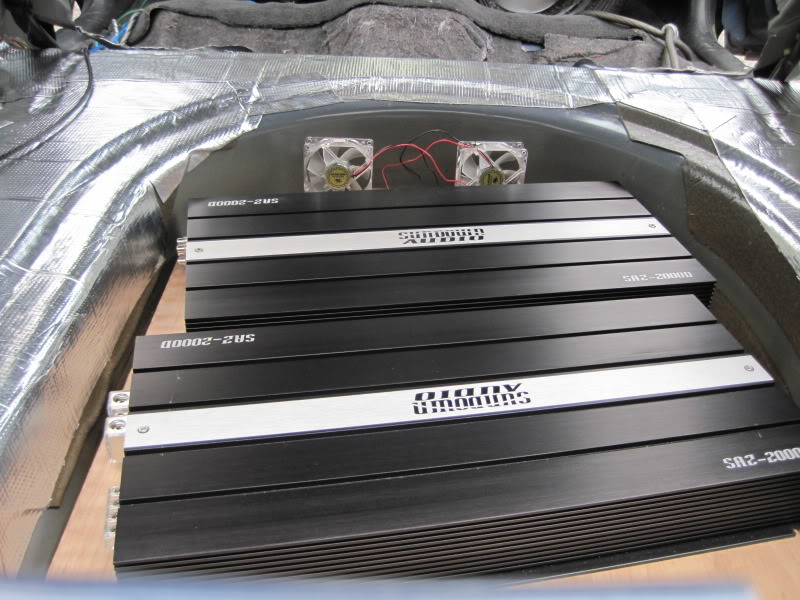

In this build I will be using 4 fans to help keep the sub amps cool as they will be hidden under the sub box, as I have taken out the spare tire and the thing holding the spare tire in the well.




other then that my last build was 144db's on 1-saz2000 this new build will be double the power and double the cone area! and maybe i will upgrade to a pair of saz2500 but we will see on that as nothing is set in stone.

Tomorrow (Monday may 10th) I hope to have the box finalized as in all pieces cut and nearly 100% done and sub holes will be cut out some time this week also.

I have also started my new job on Monday and I will be working 10-11/day so this build could be a while in the making lol!

keep in mind this is about 1-2days worth of work I don't work very fast i take my time and do it right and enjoy some beers! also any idea will be cool and anything you want to ask go for it! Other then that this build is completely done using birch 3/4! it is very very nice stuff to use and very easy to work with!

Cheer's
Kenneth
(time for Chinese, msg pumped food)



Sweet box design. Is the area under the subs enclosed at the back? It might react like a 4th order bandpass with the sealed part being leaky. Are those 12's or 15's? Each sub see's how many cubes after displacements?



Looking good Ken. We'll have to get together sometime!



the area under the subs is enclosed at the back and yes 4th order is what we were going for in this build!!

those subs are 15inch subs sorry I forgot to add that but thanks for asking!

each sub is about .4 so .8 subtract the port whihc is about .5(total) so each subs sees about 2.8-3cubics each

i would have to look up my notes again to get exact numbers but you get the idea!



for sure man! it will be good times!



LOL at the paint grade Maple (or Birch) that you spent like $40 on



it was birch! and i got a trick to get it for the same price of 3/4 mdf! and hell they even cut it all for you lol!!



let me know how you get

30x36x17.5

into the car... lol i had a VERY hard time getting 15 tall 36 wide and 31 deep in to get it in the car i took the top off and put it on inside the car

then to get it out... arm rest on center console came off drivers side rear door came off and some of the carpet on the hump under back seat had to get moved and it was still super hard.... and this was WITHOUT the subs in the box.. i wouldent of been able to do it with the subs in the box lmao



lmoa don't remind me lol this is the issue i don't want to deal with

i am thinking leaving the box half done and going from there



i still think that will be hard let me know how you get it in and what you have to cut lol
