help amp over heating

I have a 01 town car new subs amp and farad cap my amp plays for about 15 min gets hot and cuts off sent if to planet audio they wait it got a little warm on the bench test but never hot and cut off every thing is new . if im not mistaken the way I have everything it should be fine it has 0 gauge power wire and grounds

3000W 2 Channel Full Range Class A/B Amplifier Dimensions 18.22"L 7"W 2.39"H
3000 W MAX Power 2 Channel
1125 W X 2 RMS @ 2 ohm
563 W X 2 RMS @ 4 ohm
2250 W X 1 RMS Bridged @ 4 ohm

ANARCHY - 12 inch DUAL Voice Coil (4 Ohm) 1800-watt Subwoofer
One 12" Woofer with DUAL 4 ohm 2" Voice Coil
1800 Watts MAX 900 Watts RMS Power Handling
88dB Sensitivity, 32 Hz Resonant Frequency

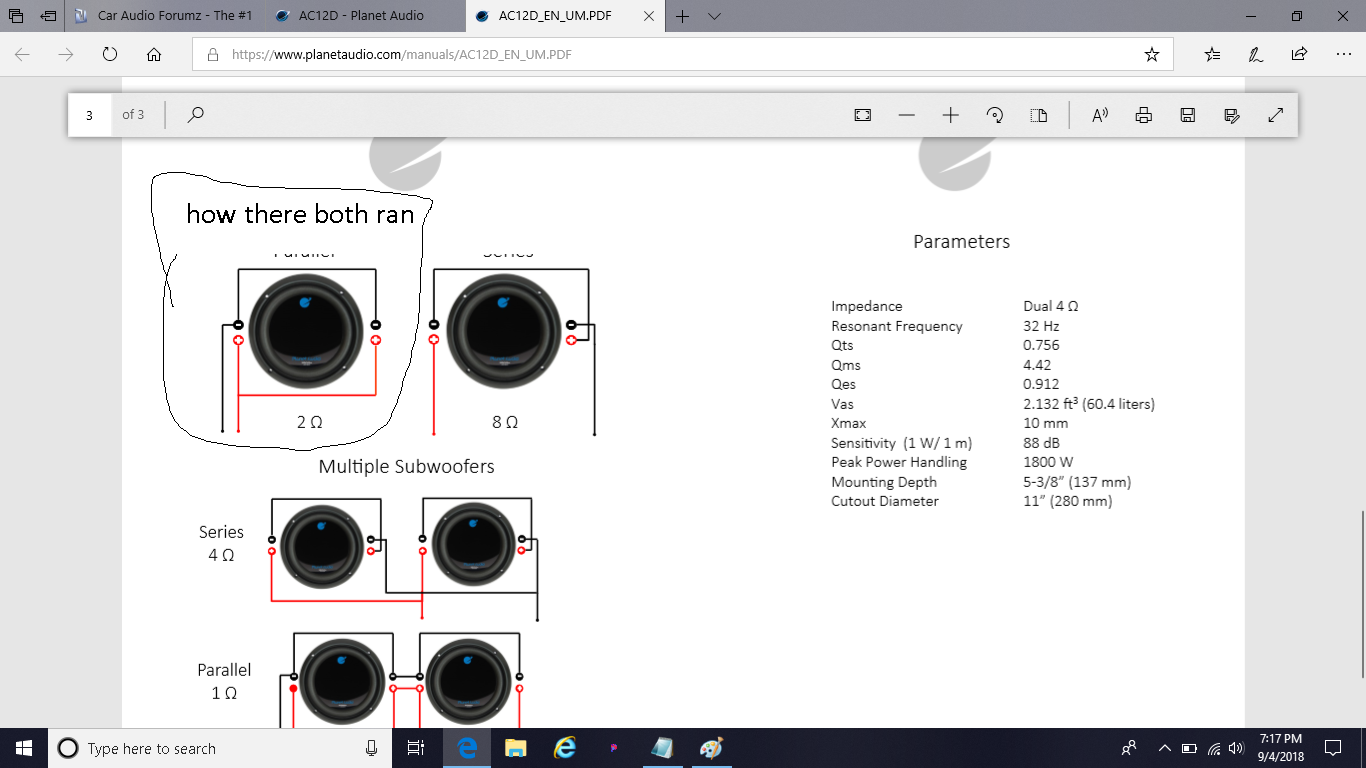

ran in parallel down to 2 ohm each the sub is ran neg to neg then to amp and pos to pos and ran to amp both subs are ran th
Attached Thumbnails
help amp over heating-sub-ran.png
