tbommb

Condition: Used
Category: Components

I have a Morel Elate 6 3 Way for sale.

Power Type: 200 rms


Asking Price is $999.99


Seller Information: Anthony Bommarito
Phone: (314) 518-1825

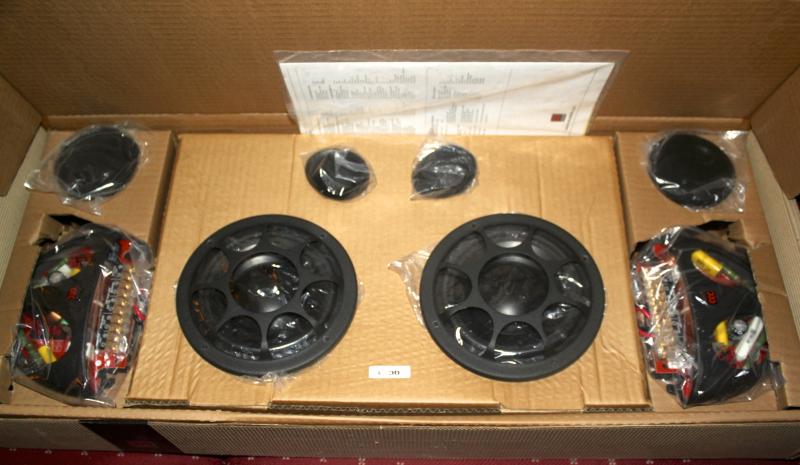

Up for sale is Morel Elate 6 3 way speaker component system. Speakers were only played literally a few times, they are practically new. Only tested in a vehicle and then packaged back up. No issues, this is a great collectible rare set of components! If you are a true audiophile these are for you. GUARANTEED AUTHENTIC!



These Elate 3 way's give you the ultimate combination of technology and unmatched quality sound. These are Morel's answer to a deep and precise sound and bass reproduction. They are made to be used in many applications, the Elate's feature the most technological innovation Morel has to offer.

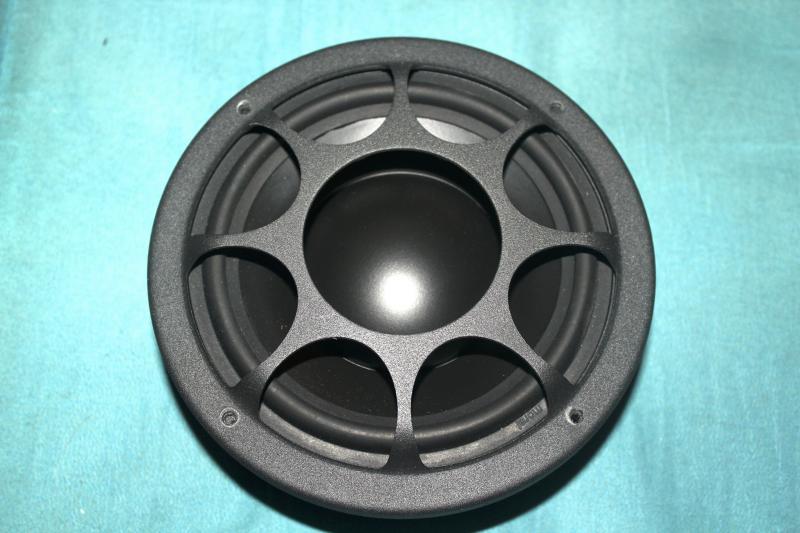

The Uniflow aluminum diecast chassis woofer has shallow aerodynamic design to minimize sound reflectionsand distortion. The large diameter 75mm( 3") Hexatech voice coil suppports a one piece DPC shallow cone, giving the loudspeaker profile to remain low while preventing cone breakup distortion at high levels.


The Elate's have a signature "sweet and warm" sound coming to the fore with the MT-23 and its powerful double neodymium magnet and Acuflex coated sift dome tweeter. Built to perform it has a 28mm ( 1-1/8") diameter aluminum Hexatech voice coil to provide better power handling. The powerful double magnet motor, with its low resonance point makes the MT-23 a transient and dynamic tweeter that forms a high and wide soundstage and an accurate image.


For the music lover and pure audiophile the Elate's come with the CDM-88, which is made for high-end audio systems and is the first choice of any purist. The CDM-88 soft dome midrange has a large 54mm(2-1/8")diameter aluminum Hexatech voice coil that drives a soft dome membrane with a larger sound radiating surface providing the full midrange frequency spectrum with deep clear sound. The CDM-88 has a C.A.R Filter providing superior acoustics all while eliminating the need for a rear chamber.


These were designed with audio installers in mind, the Elate's come with the Accuset MX-22.2 crossover system that offers you different adjustment options: frequency slope selection, level attenuation for all components, bi-wiring and bi-amping, assuring optimum adaptability of the speakers performance to any vehicle. This new crossover alignment system makes the tuning process that much easier for tuning and adjustments.



SPECIFICATIONS:

System specs:

*Nominal Impedance: 4 ohm
*Power Handling: 200 watt
*Max. Transient Power Handling: 1000 watt
*Frequency Response: 25-25000hz
*Sensitivity: 89db
*FS: 50hz
*Voice Coil Diameter: 75mm ( 3")
*Voice Coil Height: 14.5mm ( 0.57")
*Voice Coil Type: aluminum
*Voice Coil Wire: Hexatech aluminum
*DC Resistance: 3.7 ohm
*Voice Coil Inductance@ 1 khz: 0.38 MH
*Magnet System: hybrid rear vented
*HE-Magnetic Gap Height: 6mm ( 0.25")
*B-Flux Density: 0.8T
*BL Product/BXL: 6.35
*Max Linear Excursion/Xmax: 8.5mm
*Suspension Compliance CMS: 721
*Mechanical Q Factor QES: 0.39
*Total Q FActor Q/T: 0.33
*QMS: 2.06
*Mechanical Resistance RMS: 1.03 kgs
*Moving Mass MMS: 13.56
*Equivalent Cas Air Load VAS: 14.35 litres
*Effective Piston area SD: 119 cm
*Cone Type: one piece formed
*Cone Material: DPC( damped polymer composite)
*Unit Diameter: 165 mm
*Mounting Depth: 61 mm( 2.4")
*Mounting Cutout: 141 mm( 5.55")
*Net Weight: 1.180 kg( 2.60 lb)



TWEETER MT-23 SPECS:


*Nominal Impedance: 6 ohm
*Power Handling: 130 watt
*Max. Transient Power Handling: 350 watt
*Sensitivity: 91db
*FS: 950 hz
*Voice Coil Diameter: 28 mm( 1.10")
*Voice Coil Former: aluminum
*Voice Coil Wire: Hexatech aluminum
*DC Resistance: 5.2 ohm
*Magnet system: double magnet neodymium
*Dome Type: acuflex soft dome
*Dome Material: silk
*Unit Diameter: 45mm( 1.80")
*Mounting Depth: 20mm ( 0.8")
*Mounting Cutout: 50mm ( 2.0")

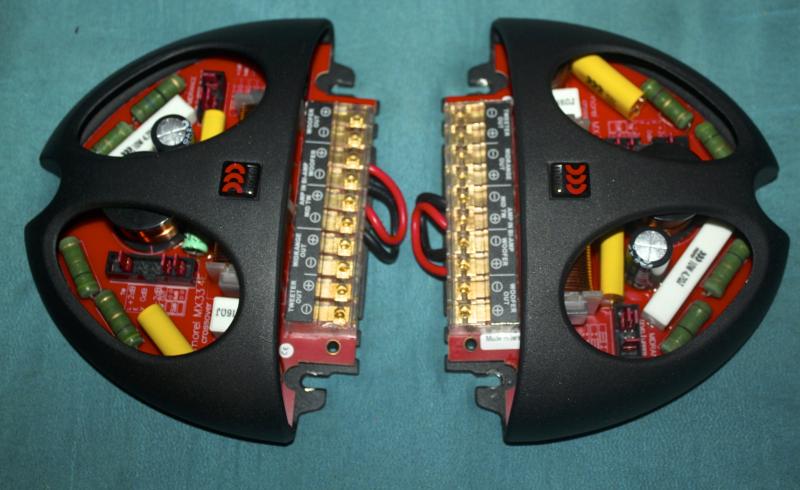

ACCUSET MX-33.3 CROSSOVER:


*Nominal Impedance: 4 ohm
*Power Handling: 250 watt
*Crossover Points: woofer: 300hz, 12 db..midrange low: 300 hz, 6 db...midrange high: 2800hz, 6/12db (variable)...tweeter:3800hz, 6/12db( variable)

*Crossover Controls

Midrange: Upper Frequency slope cut: 6/12db, Level: -2db, 0db, +2db
*Tweeter: Frequency slope cut: 6/12db, level: -2db, 0db, +2db
*Wiring Options: standard, bi-amp, bi-wire
*Housing Material: Die-cast aluminum ( black)
*Net Weight: 1.20 kg( 2.65lb)


CDM 88 SPECS:

*Nominal Impedance: 4 ohm
*Power Handling: 100 watt
*Max Transient Power Handling: 300 watt
*Sensitivity: 89db
*Frequency Response: 450-7000hz
*FS:280hz
*Voice Coil Diameter: 54mm (2.10")
*Voice Coil Former: Aluminum
*Voice Coil Wire: Hexatech Aluminum
*DC Resistance: 3.5 ohm
*Magnet System: neodymium rear vented
*Dome Type: acuflex soft dome
*Dome Material: soft dome
*Unit Diameter: 88mm ( 3.5")
*Mounting Depth: 21mm (0.83")
*Mounting Cutout: 75.5 mm( 2.97")
*Net weight: 0.25kg( 0.55lb)
