tbommb

Condition: new
Category: Components

I have a Morel ELATE LIMITED EDITION 3 WAY for sale.

Power Type: max power 1000 watt


Asking Price is $$1500.00

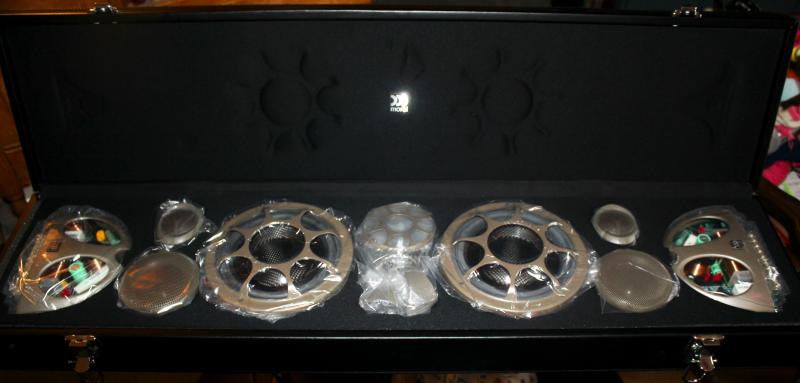

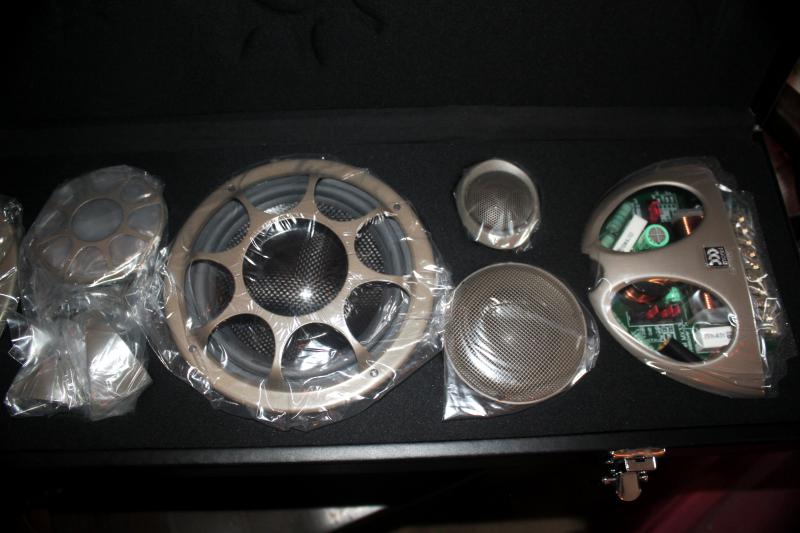

This is a Morel Elate Limited Edition 3 way speaker component system numbered 004/500. Each speaker has the limited edition number on it. This set is new, still in packaging. Comes in beautiful leather case. The only thing I do not have is the owners manual. I believe it is downloadable online or you can contact Morel and receive one. This is an unbelieveable set for the audiophile.

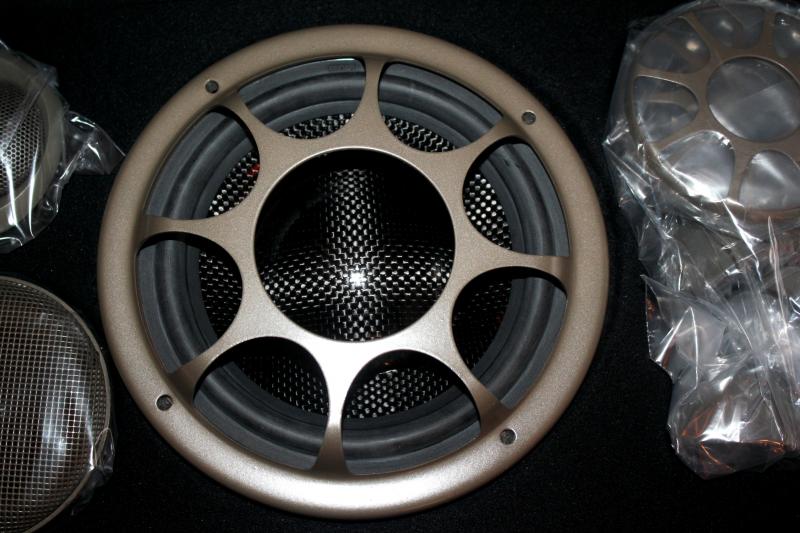

WOOFER:

*NOMINAL IMPEDANCE: 4.00 OHM
*POWER HANDLING: 200 WATT
*MAX. TRANSIENT POWER HANDLING: 1000 WATT
*SENSITIVITY( 2.83V/ 1M) : 88DB
*FREQUENCY RESPONSE: 23-400 HZ
*FS: 50 HZ
*VOICE COIL DIAMETER: 75.00MM( 3.00")
*VOICE COIL HEIGHT: 16.00 MM ( 0.62")
*VOICE COIL TYPE/FORMER: ALUMINUM
VOICE COIL WIRE: HEXTATECH ALUMINUM
*DC RESISTANCE: 4.10 OHM
*VOICE COIL INDUCTANCE @ 1KHZ: 0.44 MH
*MAGNET SYSTEM: HYBRID REAR VENTED
*HE-MAGNETIC GAP HEIGHT: 6.00MM ( 0.25")
*B-FLUX DENSITY: 0.80 T
*BL PRODUCT / BXL: 7.07
*MAX. LINEAR EXCURSION / XMAX: 10.0 MM( +5.0 MM)
*SUSPENSION COMPLIANCE CMS: 0.560
*MECHANICAL Q FACTOR Q/T: 0.37
*TOTAL Q FACTOR Q/T : 0.37
*QMS: 2.21
*MECHANICAL RESISTANCE RMS: 2.44 KGS
*MOVING MASS MMS: 16.5 GR (0.58OZ)
*EQUIVALENT CAS AIR LOAD VAS: 11 L ( 0.39FT)
*EFFECTIVE PISTON AREA SD: 119 CM
*CONE TYPE: ONE PIECE FOMED
*UNIT DIAMETER: 165.00 MM( 6.50")
*MOUNTING DIAMETER: 61.00 MM( 2.40")
*MOUNTING CUTOUT: 141.00 MM( 5.55")
*NET WEIGHT: 1.18 KG( 2.6 LB)


CDM 88LE

NOMINAL IMPEDANCE: 4 OHM
POWER HANDLING: 100 WATT
MAX POWER HANDLING: 300 WATT
SENSITIVITY: 89DB
FREQUENCY RESPONSE: 450-7000HZ
FS: 280HZ
VOICE COIL DIAMETER: 54MM( 2.10")
VOICE COIL FORMER: ALUMINUM
VOICE COIL WIRE: HEXTATECH ALUMINUM
DC RESISTANCE: 3.50 OHM
MAGNETIC SYSTEM: NEODYMIUM REAR VENTED
DOME TYPE: ACUFLEX SOFT DOME
DOME MATERIAL: SILK
UNIT DIAMETER: 88MM ( 3.50")
MOUNTING DEPTH: 21MM ( 0.83")
MOUNTING CUTOUT: 75.50MM (2.97")
WEIGHT: 0.55 LB

MT 24 LE

NOMINAL IMPEDANCE: 6 OHM
POWER HANDLING: 130 WATT
MAX POWER HANDLING: 350 WATT
SENSITIVITY: 90DB
FREQUENCY RESPONSE: 1400-25000HZ
FS: 700HZ
VOICE COIL DIAMETER: 28.00 MM( 1.10")
VOICE COIL FORMER: ALUMINUM
VOICE COIL WIRE: HEXTATECH ALUMINUM
DC RESISTANCE: 5.20 OHM
MAGNETIC SYSTEM: DOUBLE MAGETIC NEODYMIUM
DOME TYPE: ACUFLEX SOFT DOME
DOME MATERIAL: SILK
UNIT DIAMETER: 45.00 MM( 1.80")
MOUNTING DEPTH: 20.00 MM ( 0.80")
MOUNTING CUTOUT: 50.00 MM ( 2.00")
WEIGHT: 0.15 LB

CROSSOVERS



ACCUSET MX-33.3LE

NOMINAL IMPEDANCE: 4.00 OHM

POWER HANDLING: 250 WATT

CROSSOVER POINT: WOOFER: 380HZ/ 12 DB
MIDRANGE: LOW 300DB 6DB, HIGH 3800 HZ 6/12DB ( VARIABLE)
TWEETER: 3800HZ 6/12DB ( VARIABLE)

CROSSOVER CONTROLS:

MIDRANGE UPPER FREQUENCY SLOPE CUT: 6/12 DB
MIDRANGE LEVEL: -2 DB, 0DB, +2 DB
TWEETER FREQUENCY SLOPE CUT: 6/12DB/OCTAVE
TWEETER LEVEL: -2DB ODB +2DB

WIRING OPTIONS:

STANDARD, BI-AMP, BI-WIRE
HOUSING MATERIAL: DIE-CAST ALUMINUM
NET WEIGHT: 2.65 LB


ACCUSET MX-22.2LE

NOMINAL IMPEDANCE: 4.00 OHM
POWER HANDLING: 280 WATT
CROSSOVER POINT: 1800 WATT
CROSSOVER CONTROLS: FREQUENCY SLOPE CUT: 6/12 DB. TWEETER: + 4DB ( 2 DB STEPS)
WIRING OPTIONS: STANDARD, BI-AMP, BI-WIRE
HOUSING MATERIAL: DIE-CAST ALUMINUM
TERMINAL TYPE: LARGE SCREWS GOLD PLATED
NET WEIGHT: 2.40LB


ENCLOSURE SPECS:


SEALED: VOLUME: 4 LITRE. F3: -3DB 75 HZ W/50% FILLING


PORTED: VOLUME: 6.5 LITRE. F3: -3DB 60 HZ W/25% FILLING. PORT DIAMETER: 1.5". PORT LENGTH: 11CM

Ken2u

Still for sale?

momax_powers

you know this for sale post is from 2013
