thedivision

Hello,

I will be building a ported enclosure for my RE SE15. (http://reaudio.com/specs.html#sp_se)

I would like the sub to face the back of the car, but the port to face upwards (into a whole where my stock sub used to be).

As per manufacture specs, it should be 4 cu. ft. and tuned to 34Hz.

I'm kind of lost when it comes to the whole port diameter/length thing. Can my port either be rectangular or cylindrical?

I was hoping to get some design ideas.

Thanks!

John__Taylor

iTrader: (3)

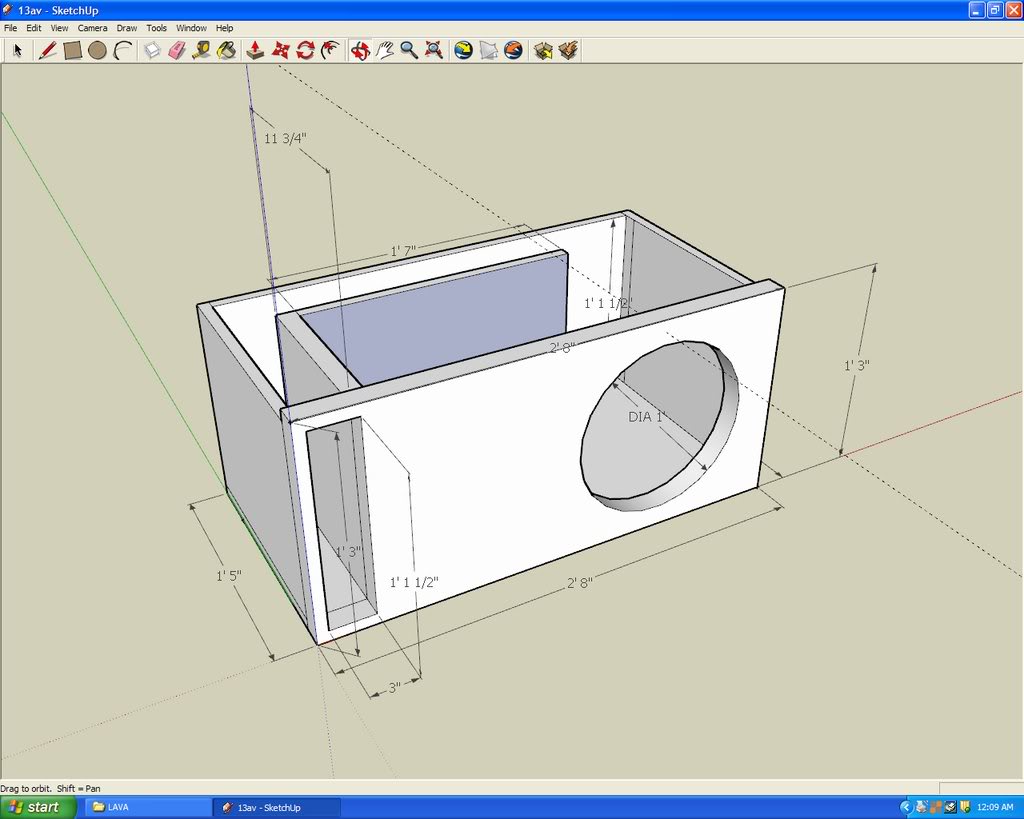

4 cubes is pretty big you know, but just to give you an idea, this box is 2.4 cubes, but the drawing is not quite finished yet, I'm still learning Sketchup.
Oh, tuning is 35Hz.

jalat

iTrader: (6)

6" aeroport thru rear deck is the only thing i can think of.
give me dimensions and i can sketch something up for you

thedivision

I'm really open to any dimensions, I have the entire trunk to work with. I just wanted the port to face upwards... that's pretty much it.

Thanks

thedivision

Here are some results after using an online calculator:

Height? = 18"
Width? = 20"
Depth? = 25"

Wood Thickness? = 0.75"
Speaker Displacement? = 0.16 Ft³
Port Frequency? = 34 Hz
Port Diameter? = 5"
Number of Ports? = 1

Gross box volume = 3.991 Ft³
Net box volume = 3.9 Ft³
Port Length = 7.985 Inches
Port Area = 19.635 Inches2
Port Volume = 0.091 Ft³

thedivision

Anyone?

jalat

iTrader: (6)

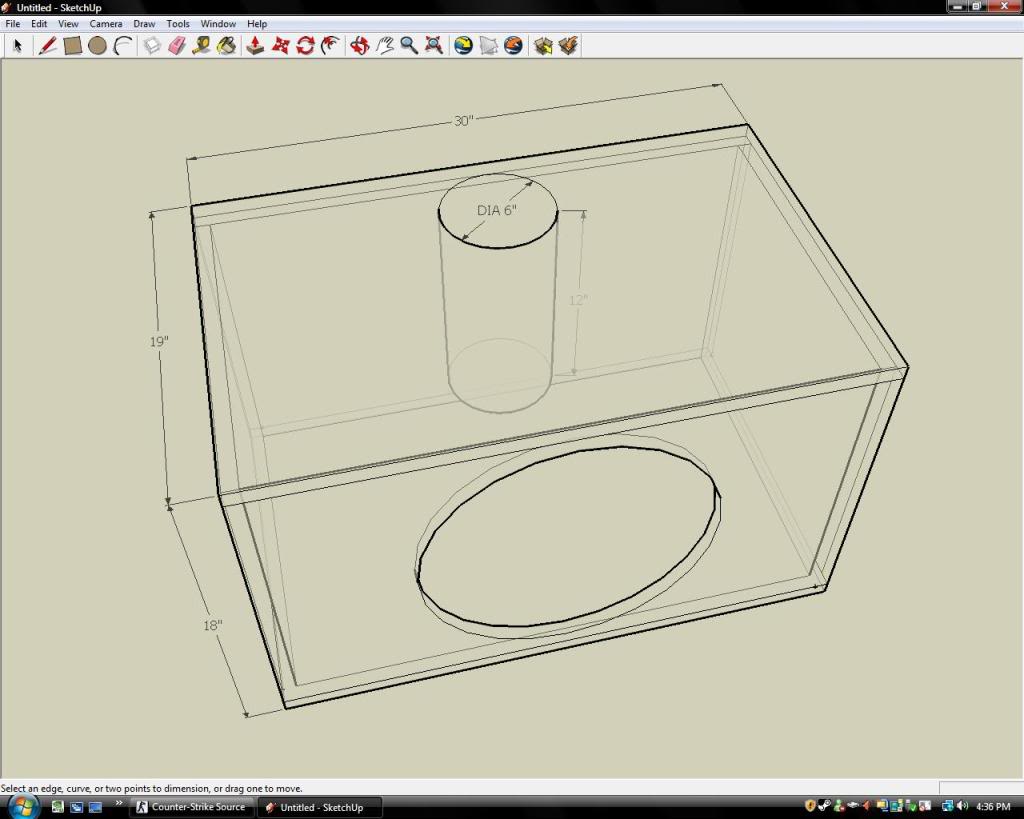

just to give you an idea...
roughly 4.25 cubic feet @ 34hz
