Enclosure Design & Construction Help Post and discuss your car audio box construction, design, fiberglass and other fabrication questions here.

Type R box question

Thread Tools

Search this Thread

Old 09-20-2007, 06:03 PM
  #1
50 Watt CAFz'r
Thread Starter

AyZe's Avatar

Join Date: Jan 2007
Posts: 352
Type R box question

2.0 cubes @ 35hz, does feeding it more power have to change anything with the tuning? Or anything else?
AyZe is offline
Old 09-20-2007, 06:34 PM
  #2
50 Watt CAFz'r
Thread Starter

AyZe's Avatar

Join Date: Jan 2007
Posts: 352
sorry i worded that wrong , what i meant was if you throw more power @ it will i need to make the box bigger or smaller , or tune it higher or lower? Like just in case the ammount of power @ the frequency might push it to far or anything like that
AyZe is offline
Old 09-20-2007, 07:21 PM
  #3
2000 Watt CAFz'r
iTrader: (3)

veeman's Avatar

Join Date: Nov 2004
Posts: 2,455
as long as you stay within the rms range, you should be fine...you may want to use a subsonic filter though, set at about 25 hz. that will help to prevent over excursion below the tuning frequency. Remember, subs in ported enclosures become unloaded below the tuning frequency, 35 hz in your case.
veeman is offline
Old 09-21-2007, 02:41 PM
  #4
Administrator

Dukk's Avatar

Join Date: Feb 2006
Posts: 16,855
Lightbulb

If one cares to consider the extremes...

An oversized enclosure may make the woofer sensitive to overpowering as it will give up control of the driver faster. The Q of the driver helps determine how sensitive it is to volume.

Also, an undersized vent will become noisy and restrictive (which then alters tuning frequency) with an increase in power.
Dukk is offline
Old 09-21-2007, 04:20 PM
  #5
50 Watt CAFz'r
Thread Starter

AyZe's Avatar

Join Date: Jan 2007
Posts: 352
i went small to med sized and tested out low and took it up to bout 850 wrms and all i can say is ..... im very very impressed! Best and loudest 40 dollar sub ive ever herd
AyZe is offline
Old 09-21-2007, 04:36 PM
  #6
50 Watt CAFz'r
Thread Starter

AyZe's Avatar

Join Date: Jan 2007
Posts: 352

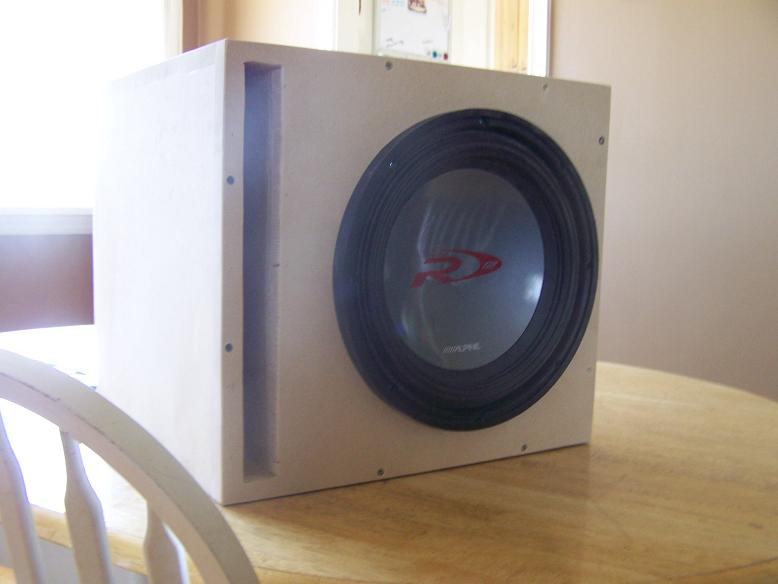

Type R box question-000_0364.jpg

theres pic
AyZe is offline
