Alpine or Clarion

Thread Tools

Search this Thread

Old Apr 26, 2009 | 11:19 AM
  #21
Sikk Nation's Avatar
500 Watt CAFz'r
iTrader: (1)

Joined: Oct 2008
Posts: 992
You have to measure the port... and tuning freq of 70 really isn;t possible. For car audio most commonly tuning falls between 35-and 42hz for pre-fab boxes.
Old Apr 26, 2009 | 11:54 AM
  #22
stallman24's Avatar
Thread Starter
0 Watt CAFz'r

Joined: Apr 2009
Posts: 22
okay just measured the port it was
H 9 1/4
L 2 1/2

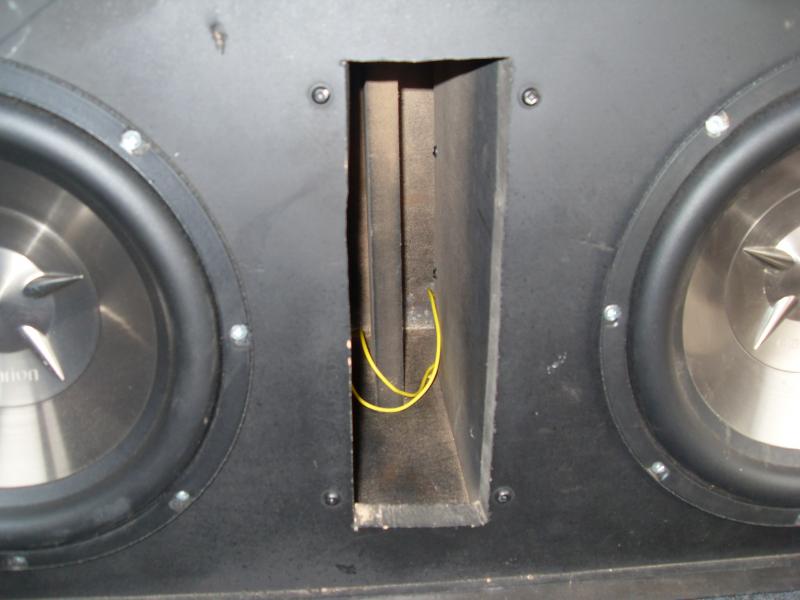

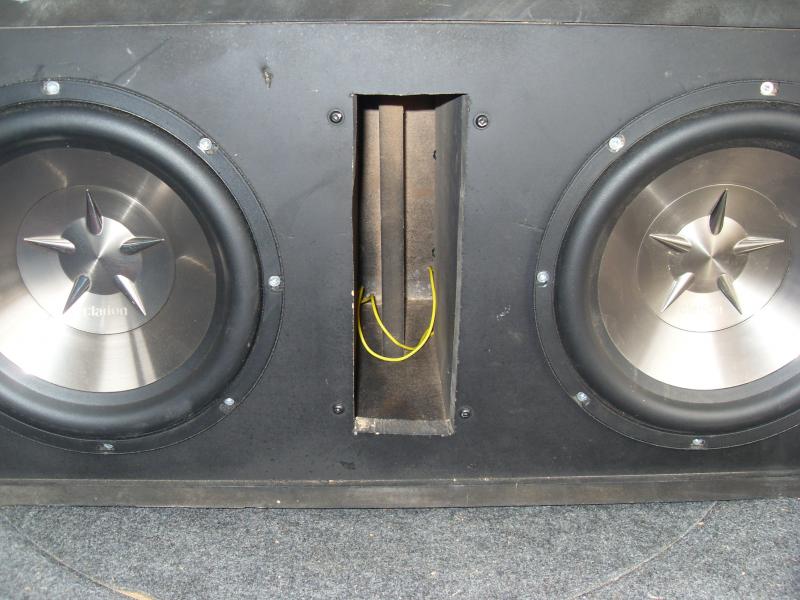

i also took a picture if that helps
Old Apr 26, 2009 | 11:57 AM
  #23
stallman24's Avatar
Thread Starter
0 Watt CAFz'r

Joined: Apr 2009
Posts: 22
for got to do it last post lol
Attached Thumbnails Alpine or Clarion-sdc11740.jpg   Alpine or Clarion-sdc11741.jpg
Old Apr 26, 2009 | 01:21 PM
  #24
Sikk Nation's Avatar
500 Watt CAFz'r
iTrader: (1)

Joined: Oct 2008
Posts: 992
How deep is it?
Old Apr 26, 2009 | 01:22 PM
  #25
Sikk Nation's Avatar
500 Watt CAFz'r
iTrader: (1)

Joined: Oct 2008
Posts: 992
Looking at the back of that port as well with the divider between it I really don't think I can accurately get a guess to it's tuning. It's not a well made box.
Old Apr 26, 2009 | 02:07 PM
  #26
stallman24's Avatar
Thread Starter
0 Watt CAFz'r

Joined: Apr 2009
Posts: 22
haha yeah i know i dont like it very much and its 13 1/4 deep would that little divider make a difference because i can just take it out theres only one screw holding it on lol
Old Apr 26, 2009 | 03:21 PM
  #27
Sikk Nation's Avatar
500 Watt CAFz'r
iTrader: (1)

Joined: Oct 2008
Posts: 992
With the subs in there, your running with 1.9cu.ft tuned to 42hz.
With those subs the response is tuned for a big Spike around 38-46hz but doesn't have enough port area. Must sound like crap.
Old Apr 26, 2009 | 05:11 PM
  #28
stallman24's Avatar
Thread Starter
0 Watt CAFz'r

Joined: Apr 2009
Posts: 22
haha you got that rightt.... so with the dimensions that you have given me should make it sound a hell of alot better?
Old Apr 26, 2009 | 05:47 PM
  #29
Sikk Nation's Avatar
500 Watt CAFz'r
iTrader: (1)

Joined: Oct 2008
Posts: 992
the tuning is pretty simlar to the box you have now. Just a cu.ft bigger for more efficient output.

If you want something tighter and more musical go with 2.2cu.ft with a 3" x 12" X 32" long port, that will be 32Hz tuning.

2.2cu.ft is After all displacements have been calculated (port, subwoofers)
Old Apr 26, 2009 | 06:06 PM
  #30
stallman24's Avatar
Thread Starter
0 Watt CAFz'r

Joined: Apr 2009
Posts: 22
okay so the port should go inbetween the subs is that the best place or??..... and overall how big would the box be so i could get 2.2 cu ft. including the port and box
