eclipse cd8445 install tips?

Old 12-06-2006, 06:08 AM
  #1
50 Watt CAFz'r
Thread Starter
iTrader: (1)

Join Date: Jul 2005
Posts: 376
Question eclipse cd8445 install tips?

i just received this cd8445 and i have to say that it is the most complex h/u i have every owned, including the 200 page owners manual. to anyone experienced with eclipse have any tips to install this unit? for example is it better to unlock the deck with the cd key or memory stick? i imagine that the cd and stick are in the deck since i didn`t see them in the package.
mayhem is offline
Old 12-06-2006, 06:46 AM
  #2
1000 Watt CAFz'r
iTrader: (3)

SQ Civic's Avatar

Join Date: May 2005
Posts: 1,185
Originally Posted by mayhem
i just received this cd8445 and i have to say that it is the most complex h/u i have every owned, including the 200 page owners manual. to anyone experienced with eclipse have any tips to install this unit? for example is it better to unlock the deck with the cd key or memory stick? i imagine that the cd and stick are in the deck since i didn`t see them in the package.
I am not farmiliar with that unit,
you pick a cd of your choice to use as a 'key' to unlock the HU, so it reads that cd, and uses it as the password so to speak..

Mark
SQ Civic is offline
Old 12-06-2006, 07:26 AM
  #3
50 Watt CAFz'r
Thread Starter
iTrader: (1)

Join Date: Jul 2005
Posts: 376
Originally Posted by SQ Civic
I am not farmiliar with that unit,
you pick a cd of your choice to use as a 'key' to unlock the HU, so it reads that cd, and uses it as the password so to speak..

Mark
ahh, now i`m getting it. i wonder if it can be any music cd, or can you use a formatted cd-r or cd-r music (for a component burner)
mayhem is offline
Old 12-06-2006, 07:28 AM
  #4
1000 Watt CAFz'r
iTrader: (3)

SQ Civic's Avatar

Join Date: May 2005
Posts: 1,185
Originally Posted by mayhem
ahh, now i`m getting it. i wonder if it can be any music cd, or can you use a formatted cd-r or cd-r music (for a component burner)
yes it can be any cd.. and a FYI, if you use a retail cd, a burned copy of it will work too, this can be a good thing and a bad thing I suppose. as long as it's an exact copy that is.

Mark
SQ Civic is offline
Old 12-06-2006, 10:09 AM
  #5
50 Watt CAFz'r
Thread Starter
iTrader: (1)

Join Date: Jul 2005
Posts: 376
ok thanks. now there`s a wire for the headlight switch, does that have to be connected for dimming purposes or can i leave it out?
also there`s this wire attached to a little metal box, whats that for? anybody know?
mayhem is offline
Old 12-06-2006, 04:32 PM
  #6
1000 Watt CAFz'r
iTrader: (3)

SQ Civic's Avatar

Join Date: May 2005
Posts: 1,185
Originally Posted by mayhem
ok thanks. now there`s a wire for the headlight switch, does that have to be connected for dimming purposes or can i leave it out?
also there`s this wire attached to a little metal box, whats that for? anybody know?
you don't have to hook up the dimmer wire... I never have... I don't know what box you're talking about, got a pic?
SQ Civic is offline
Old 12-06-2006, 04:53 PM
  #7
1000 Watt CAFz'r
iTrader: (1)

Tom.F.1's Avatar

Join Date: Feb 2006
Posts: 1,217
I didn't know that eclipse did that little metal box thing. I have a metal box on a cable on my alpine. It says DC/DC Converter in the manual. I've heard different stories. One says it's a regulator they forgot to include in the design, the other story is they had to put it outside the HU because of electrical interference.
Tom.F.1 is offline
Old 12-06-2006, 05:14 PM
  #8
1000 Watt CAFz'r
iTrader: (3)

SQ Civic's Avatar

Join Date: May 2005
Posts: 1,185
Originally Posted by Tom.F.1
I didn't know that eclipse did that little metal box thing. I have a metal box on a cable on my alpine. It says DC/DC Converter in the manual. I've heard different stories. One says it's a regulator they forgot to include in the design, the other story is they had to put it outside the HU because of electrical interference.
my gf's old 9855 had one of those too, but from what he dexcribed, it doesn't sound like a DC/DC convertor...

Mark
SQ Civic is offline
Old 12-06-2006, 10:45 PM
  #9
50 Watt CAFz'r
Thread Starter
iTrader: (1)

Join Date: Jul 2005
Posts: 376
i`ll take a pic of it tomorrow. the maunal says nothing about it (although i haven`t read all 200 pages). it shows it in the wiring diagram, but gives no description. strange...........
mayhem is offline
Old 12-07-2006, 03:25 PM
  #10
50 Watt CAFz'r
Thread Starter
iTrader: (1)

Join Date: Jul 2005
Posts: 376

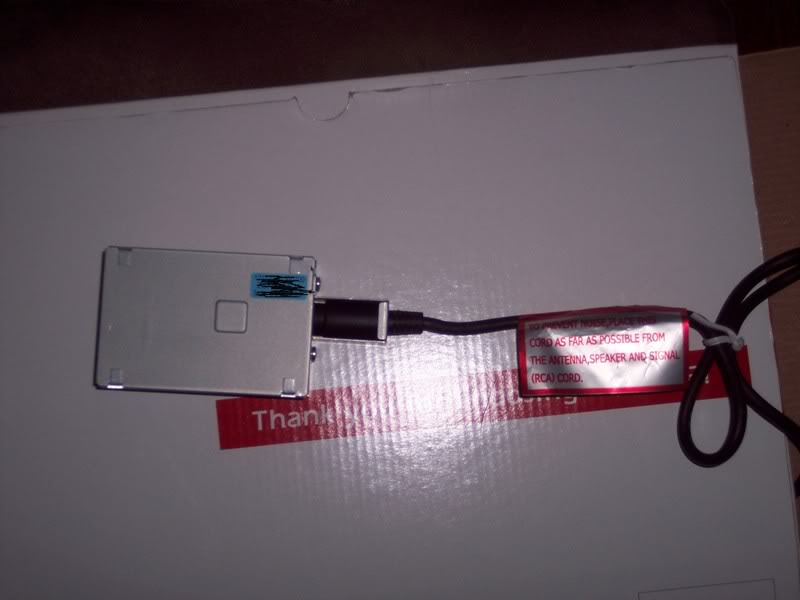

pic

Name:  100_0907.jpg
Views: 162
Size:  37.2 KB
wtf is the purpose of this thing?
mayhem is offline
