New ported box by Cutting Edge CNC

Old 06-26-2009, 10:49 PM
  #1
50 Watt CAFz'r
Thread Starter
iTrader: (2)

ndinadis's Avatar

Join Date: Sep 2008
Posts: 480
Talking New ported box by Cutting Edge CNC

I have been wanting a ported box for a little while now and finally found someone to help me out, lets just say I am extremely pleased and have no problem recommending them to others.
The box itself was designed by Jalat, I have heard many of his designs and they all sound great so this was an easy choice>
Thanks for the help Jalat (dont know if you got my pm)

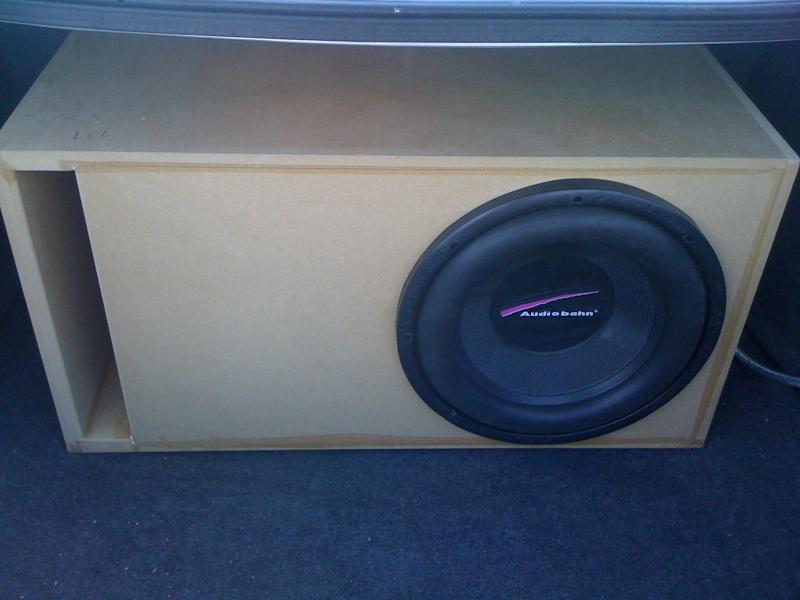

Onto the box

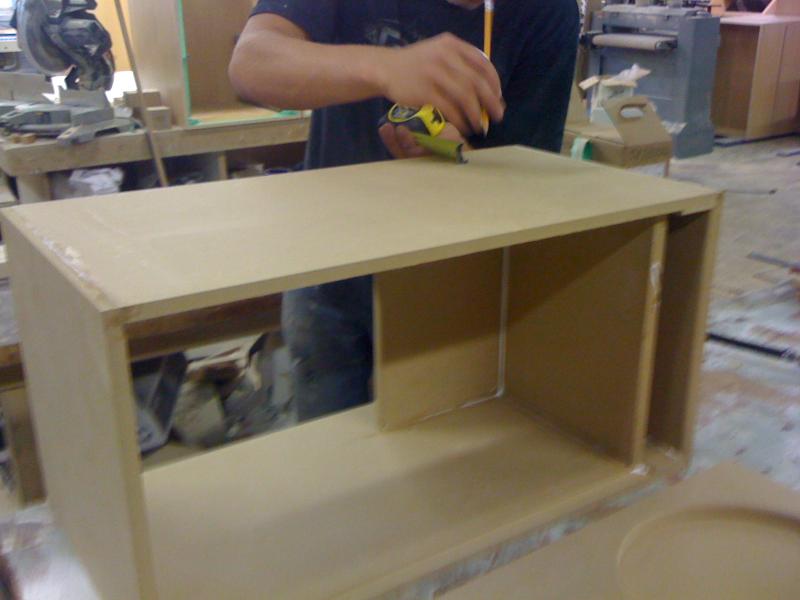

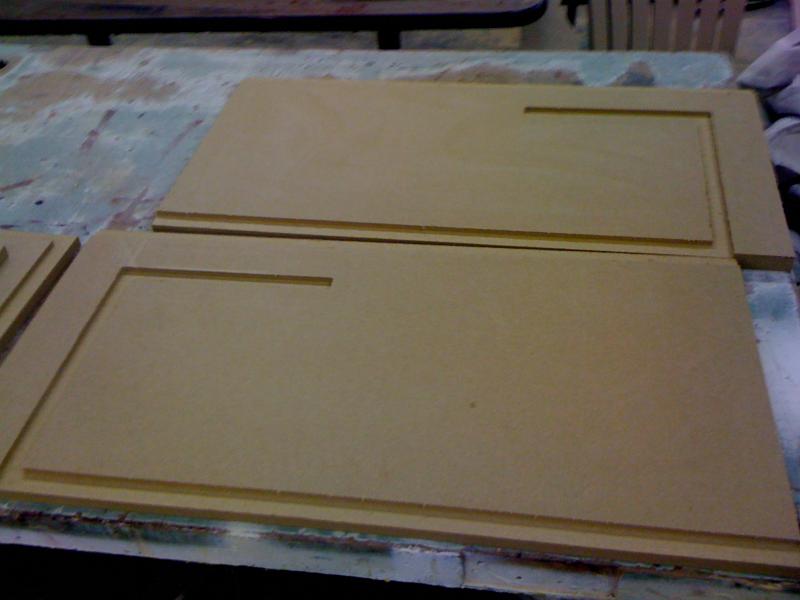

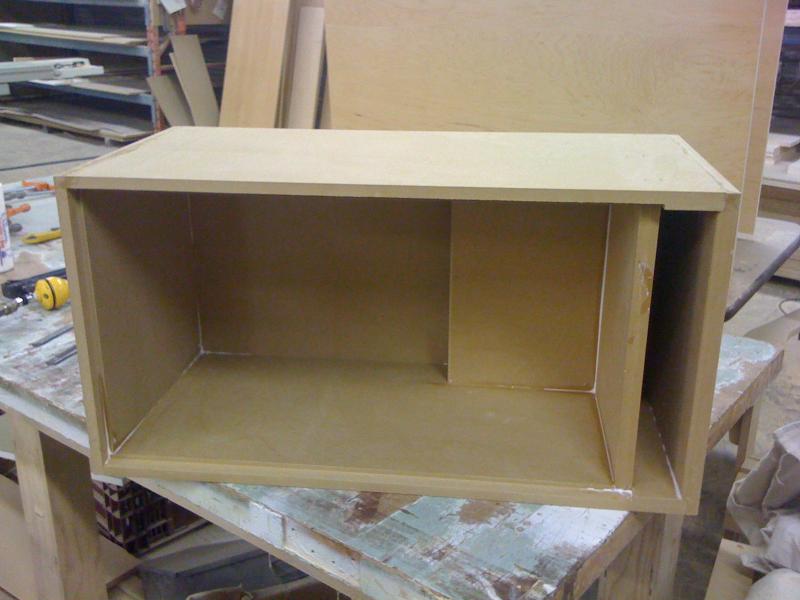

Box is made of cabinet grade MDF (is denser) with all edges joined with Rabbit joints and port walls held in with Dado

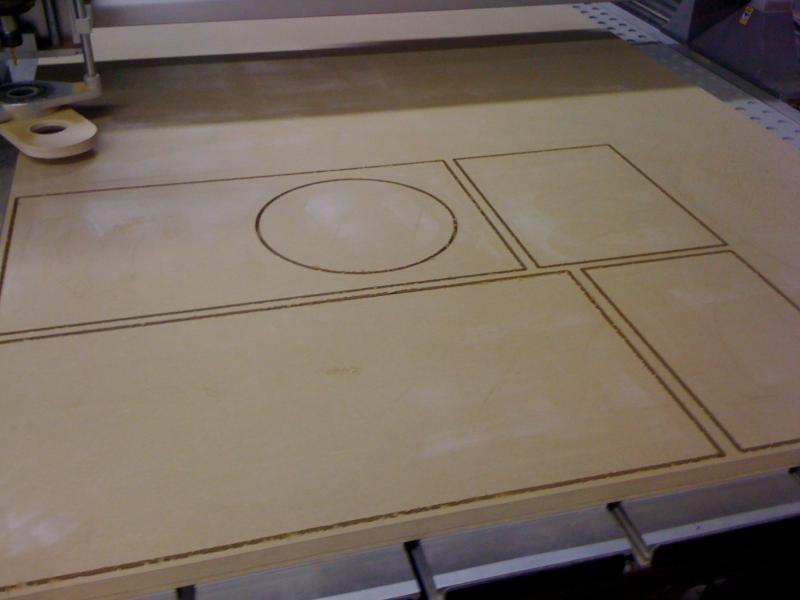

Fit and finish is great! one of the nice things about having a machine that deals with thousandths of an inch.
I'll let the pictures speak for themselves... (one thing you will notice is the ipPhone does not have the best camera)
Attached Thumbnails New ported box by Cutting Edge CNC-006.jpg   New ported box by Cutting Edge CNC-007.jpg   New ported box by Cutting Edge CNC-008.jpg   New ported box by Cutting Edge CNC-009.jpg   New ported box by Cutting Edge CNC-010.jpg

New ported box by Cutting Edge CNC-011.jpg   New ported box by Cutting Edge CNC-012.jpg   New ported box by Cutting Edge CNC-013.jpg
ndinadis is offline
Old 06-26-2009, 10:56 PM
  #2
2000 Watt CAFz'r
iTrader: (20)

Killer_klown187's Avatar

Join Date: Dec 2005
Posts: 2,810
box looks good....
Killer_klown187 is offline
Old 06-26-2009, 11:23 PM
  #3
500 Watt CAFz'r

lpchouinard's Avatar

Join Date: Sep 2008
Posts: 819
Freaking nice!

How long does it take to have it cut? Can they cut 1" MDF?
lpchouinard is offline
Old 06-26-2009, 11:59 PM
  #4
50 Watt CAFz'r
Thread Starter
iTrader: (2)

ndinadis's Avatar

Join Date: Sep 2008
Posts: 480
it doesnt show in the pictures but the edges are router'd as well inside the port and one outside.

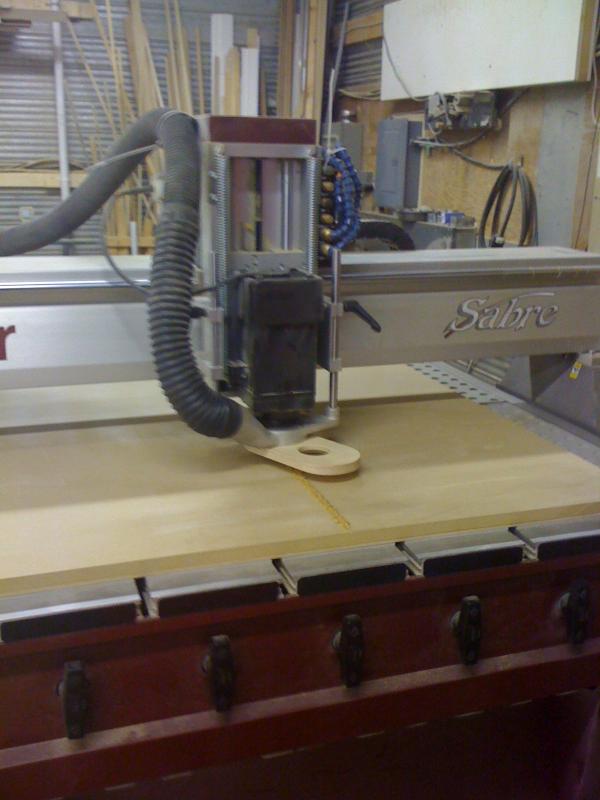

It cuts surprisingly quick and I am sure they can do 1" I know for the 3/4 the mill takes two cuts to make sure its all smooth.
Contact Dropout on the board if your interested, or pm me and I can see if I can give you their email.
ndinadis is offline
Old 06-27-2009, 03:18 AM
  #5
Level 3 Supporter
iTrader: (17)

Father Yuli's Avatar

Join Date: Oct 2000
Posts: 11,606
with the nail gun!
Father Yuli is offline
Old 06-27-2009, 06:51 AM
  #6
2000 Watt CAFz'r
iTrader: (11)

BigRedGuy's Avatar

Join Date: Nov 2000
Posts: 2,383
Thumbs up

Very nice.....

How does it sound??
BigRedGuy is offline
Old 06-27-2009, 06:59 AM
  #7
2000 Watt CAFz'r
iTrader: (4)

Join Date: Mar 2009
Posts: 3,751
Love the rabbit joints. That sure makes the fabrication easy. Nice job!!
DeadlySones is offline
Old 06-27-2009, 08:33 AM
  #8
500 Watt CAFz'r
iTrader: (1)

Toddyboy's Avatar

Join Date: Jan 2007
Posts: 709
now thats a nice tool.... nice box too
Toddyboy is offline
