General Discussion General discussion about all things car audio, from pioneer, orion, alpine and eclipse.

What Car Audio Shops Sell JL Subs / Products In Ontario?

Thread Tools

Search this Thread

Old 11-02-2009, 07:40 PM
  #21
2000 Watt CAFz'r
iTrader: (4)

DeadlySones's Avatar

Join Date: Mar 2009
Posts: 3,751
Originally Posted by DaVibe
And that's exactly what I was just going to mention ... that there were no marks on the cone showing any touching, at all. That's why I took that picture, to show that.
Man I wish you would have tried it free air. There's a lot of crap inside that box. I wonder if one of the braces are rattling... hard to tell without hearing it first hand. There is also the chance that the "W" cone is pulling away from the front cone. Just thought of that. There is a rise in the middle of the "W"cone that mounts to the center of the front cone. If they separate, it would make some noise... The only way to fix it is to pull off the front face (without tearing the surround) and re-glue it to the W cone. It glues in the center and around the surround.

Anyone that can get JL recones can get the front face with surround. Then you just have to re-glue one back on to the W cone... Good luck with that one bro...
DeadlySones is offline
Old 11-02-2009, 07:46 PM
  #22
500 Watt CAFz'r
iTrader: (5)

420guy's Avatar

Join Date: Jul 2008
Posts: 975
Originally Posted by N130Gv2
Man I wish you would have tried it free air. There's a lot of crap inside that box. I wonder if one of the braces are rattling... hard to tell without hearing it first hand. There is also the chance that the "W" cone is pulling away from the front cone. Just thought of that. There is a rise in the middle of the "W"cone that mounts to the center of the front cone. If they separate, it would make some noise... The only way to fix it is to pull off the front face (without tearing the surround) and re-glue it to the W cone. It glues in the center and around the surround.

Anyone that can get JL recones can get the front face with surround. Then you just have to re-glue one back on to the W cone... Good luck with that one bro...
You might be on to something here Paul, when Bill and I were listening to it he was thinking it was maybe the dust cap.
420guy is offline
Old 11-02-2009, 07:46 PM
  #23
2000 Watt CAFz'r
iTrader: (4)

DeadlySones's Avatar

Join Date: Mar 2009
Posts: 3,751
Crappy drawing but I think you'll have a better understanding. I have the actual cross-section of the W7's in front of me but no batteries in the camera. lol
Attached Thumbnails What Car Audio Shops Sell JL Subs / Products In Ontario?-untitled.jpg
DeadlySones is offline
Old 11-02-2009, 07:50 PM
  #24
Level 1 Supporter
Thread Starter
iTrader: (9)

DaVibe's Avatar

Join Date: Mar 2006
Posts: 1,261
That theory would make sense to me (slightly) since on hard flexes, it acts up ...
However, what would happen here? The whole top piece would fly off? Wouldn't it of done something already, by now? I'm playing it and playing it and there's been no results, good or bad ...

I just thought that maybe but now, the damn thing would blow up. But that just doesn't happened.
DaVibe is offline
Old 11-02-2009, 07:57 PM
  #25
2000 Watt CAFz'r
iTrader: (4)

DeadlySones's Avatar

Join Date: Mar 2009
Posts: 3,751
Originally Posted by DaVibe
That theory would make sense to me (slightly) since on hard flexes, it acts up ...
However, what would happen here? The whole top piece would fly off? Wouldn't it of done something already, by now? I'm playing it and playing it and there's been no results, good or bad ...

I just thought that maybe but now, the damn thing would blow up. But that just doesn't happened.

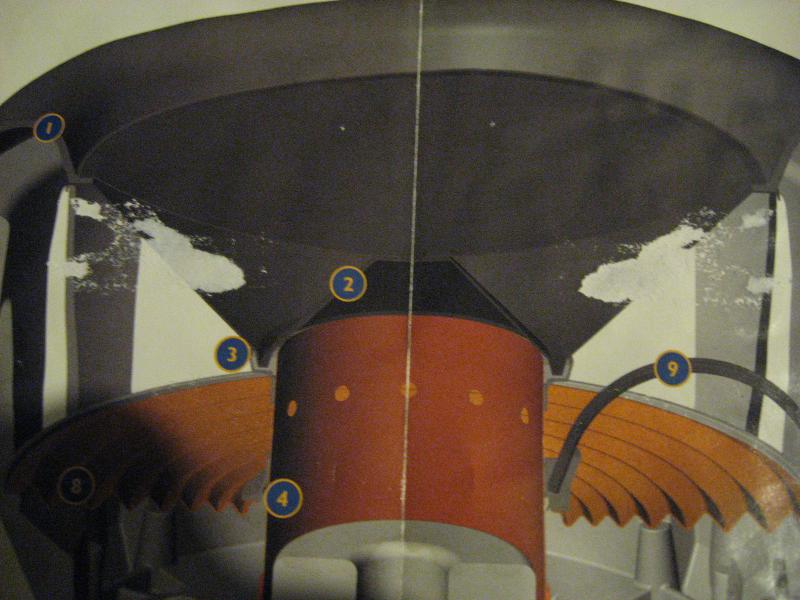

Not necessarily. It's glued all the way around the surround. The surround is sandwich glued between the front and W cones. I'm sure it will eventually separate until then, it's just really annoying... Here's the best pic I could get. The flier is pretty old.
Attached Thumbnails What Car Audio Shops Sell JL Subs / Products In Ontario?-img_1364.jpg
DeadlySones is offline
Old 11-02-2009, 07:58 PM
  #26
Level 3 Supporter
iTrader: (17)

Father Yuli's Avatar

Join Date: Oct 2000
Posts: 11,606
like Paul said attach some foam to the back of the cone over where the wires are.

sometimes it would leave a mark and sometimes it would not, depending on the type of insulation used on the wire.

if that's not the problem then something is up with the suspension. the spiders might be folding too much. how many spiders are on that thing?
Father Yuli is offline
Old 11-02-2009, 08:05 PM
  #27
2000 Watt CAFz'r
iTrader: (4)

DeadlySones's Avatar

Join Date: Mar 2009
Posts: 3,751
Originally Posted by Father Yuli
like Paul said attach some foam to the back of the cone over where the wires are.

sometimes it would leave a mark and sometimes it would not, depending on the type of insulation used on the wire.

if that's not the problem then something is up with the suspension. the spiders might be folding too much. how many spiders are on that thing?
The old JL's didn't have insulation over the leads... made finding the problem easy.

There's only one spider.
DeadlySones is offline
Old 11-02-2009, 08:17 PM
  #28
Level 1 Supporter
Thread Starter
iTrader: (9)

DaVibe's Avatar

Join Date: Mar 2006
Posts: 1,261
Maybe I'll get Yuli to throw 2000 rms on it ... that should help loosen it up
DaVibe is offline
Old 11-02-2009, 08:21 PM
  #29
2000 Watt CAFz'r
iTrader: (4)

DeadlySones's Avatar

Join Date: Mar 2009
Posts: 3,751
Originally Posted by DaVibe
Maybe I'll get Yuli to throw 2000 rms on it ... that should help loosen it up
LMFAO Ya, that might help. So long as the surround doesn't tear. That would be what will happen next. Either the glue will let go and the front cone will fall off and you can glue it back on or else the surround will tear where the glue starts to let go and it becomes crap.

Be sure to make a vid. lol

Last edited by DeadlySones; 11-02-2009 at 08:28 PM.
DeadlySones is offline
Old 11-02-2009, 08:37 PM
  #30
2000 Watt CAFz'r
iTrader: (11)

BigRedGuy's Avatar

Join Date: Nov 2000
Posts: 2,383
Lightbulb

Originally Posted by Father Yuli
like Paul said attach some foam to the back of the cone over where the wires are.

sometimes it would leave a mark and sometimes it would not, depending on the type of insulation used on the wire.

if that's not the problem then something is up with the suspension. the spiders might be folding too much. how many spiders are on that thing?
I looked for any kind of abrasion marks on the leads and the back of the cone.....nothing there.....

If the dust cap has separated from it's center glue point, that may account for the noise. It doesn't start until there is a fair bit of excursion and if it is being flexed it could be bouncing off the top end of the former. At one point I was wondering if it was hitting the back plate but I don't think it was moving far enough....

Rob if you want to pop it out again and power it up the weather is supposed to be better by the weekend.....
BigRedGuy is offline
