Old Aug 15, 2010 | 10:56 AM
  #121
XquisitesoundZ's Avatar
50 Watt CAFz'r

Joined: Jun 2007
Posts: 403
You know I do brotha???????????????????????????????????????????
Old Aug 15, 2010 | 10:57 AM
  #122
DeadlySones's Avatar
Thread Starter
2000 Watt CAFz'r
iTrader: (4)

Joined: Mar 2009
Posts: 3,751
Van flexes like mad and I seem to have two peaks. The vans usual one @ 42hz then my port... which is a little lower than I wanted it to be... actually a lot lower... lol. 29hz is my other peak, lol.

So, here are my scores.

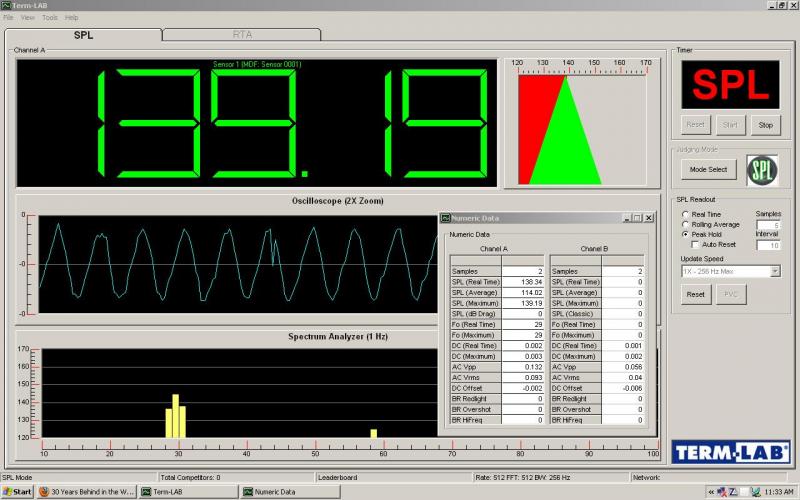

New start for the Windstar...-139.19-%40-29hz.jpg

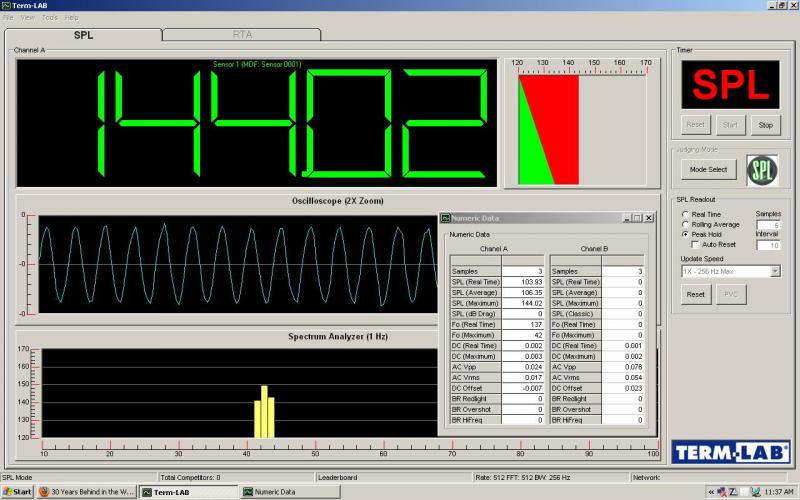

New start for the Windstar...-144.02-%40-42hz.jpg

I can't get them to full burp for some reason. Seems like a loading issue. They start off moving nicely then seem to compress and no matter how much I turn it up it doesn't gain. It did this @ 1/4 gain when before I could go max and still gain on the meter. You can literally hear is stop gaining and the subs slow and lower in excursion.. really strange, never seen it before...

Guess I've got lots of testing to do. I'm going to find a way to raise the peak to 34hz (likely cut the port down). 29hz is WAY LOW but man everything flexes like never before. lmao

Going to play around with shrinking it a bit. 8.6 might be a little too much. lol

Last edited by DeadlySones; Aug 15, 2010 at 10:59 AM.
Old Aug 15, 2010 | 10:59 AM
  #123
JDN1014's Avatar
--SPECIAL ED--

Joined: Aug 2010
Posts: 138
i dont think it would be a loading issue

hows it sound on music?
Old Aug 15, 2010 | 11:03 AM
  #124
DeadlySones's Avatar
Thread Starter
2000 Watt CAFz'r
iTrader: (4)

Joined: Mar 2009
Posts: 3,751
Kicks the crap out of music, gets real low... I need to bolt it down. lol I think with a little more work and some testing/tuning. It'll do fine for my daily box. I'll worry more when I make the SPL box. I just tried burps to see what it would do. It doesn't like them much, lol.

I'm sure the numbers will come up a little when I get tuning back around the 34hz area.
Old Aug 15, 2010 | 11:04 AM
  #125
JDN1014's Avatar
--SPECIAL ED--

Joined: Aug 2010
Posts: 138
also i think it gets quiter becasue of your voltage dropping maybe? i know your charging system is messed up ( doesnt charage unless it needs to)
Old Aug 15, 2010 | 11:05 AM
  #126
JDN1014's Avatar
--SPECIAL ED--

Joined: Aug 2010
Posts: 138
wanna try some more power next week some time? see what they do then? lol
Old Aug 15, 2010 | 11:08 AM
  #127
DeadlySones's Avatar
Thread Starter
2000 Watt CAFz'r
iTrader: (4)

Joined: Mar 2009
Posts: 3,751
Not sure if more power is the answer. I think I've gone too big but always willing to give more power a try. It doesn't seem to like the power I have now... not on burps anyway.
Old Aug 15, 2010 | 11:09 AM
  #128
JDN1014's Avatar
--SPECIAL ED--

Joined: Aug 2010
Posts: 138
got any scrap wood to toss into the box to take up air space? orrr what if you slid the port into the box? or not able to do that?
Old Aug 15, 2010 | 11:11 AM
  #129
DeadlySones's Avatar
Thread Starter
2000 Watt CAFz'r
iTrader: (4)

Joined: Mar 2009
Posts: 3,751
Nope, I was talked out of the sliding port idea, but I suppose I still could, but the noodle is sort of resined to the wood on that side... I've got lots of wood.
Old Aug 15, 2010 | 11:12 AM
  #130
DeadlySones's Avatar
Thread Starter
2000 Watt CAFz'r
iTrader: (4)

Joined: Mar 2009
Posts: 3,751
I need to strap the box and port down. moves like mad.
