That was the intended location, but the frame rail sits dead center under it. One option is to do a 6" lift on the chassis...but I'm not too fond of that on a tow vehicle. I haven't given up on it...just patiently looking at my options.
Well time flies when you're having fun...and I was having a grand old time at the shop until I noticed the time on my cell phone. (The computer times are all wacked) One could call my session "progress", but it was more like a carnage festival!
First, I found that my Alpine 7996 deck which has been sitting on a shelf for 3+ years doesn't have a working volume control. It's either full volume, or nothing when turning the volume between "0" and "1". Secondly, I fired up the PXA-H900 and found that the display screen is mysteriously blank. I tried reseting the H900...but the same result. So with the H900 down, I was left with only a full volume source unit for music testing.
The music test was more or less a session to get aquainted with the amps. I used a pair of home theater speakers with quick disconnects at the amps to switch things up. One thing is for sure, the "smallest" amp in the test had *****...and things just got stupid loud from there....
Here's a rundown on the amps I had assembled:
Arc Audio XXK 4150 - 4 X 100w @ 4 ohm
Audison VRx 2.400 - 2 X 270w @ 4 ohm
Treo SSX 200.2 - 2 X 200w @ 4 ohm
First up, I ran the Audison which had lots of oomph right out of the gate. Then I switched to one of the Treo amps (I have 2 of them) which was suprisingly close in level and clarity. I even ran the left speaker off the Audison and the right off the Treo, which resulted in some decent music playback. Both amps were set at the minimum gain setting, which was still pretty loud.
Next, I busted open the XXK 4150 to set the rail voltage down for bridging. (I have previously adjust it to give maximum voltage across 4 channels at 4 ohms) With the rail voltage set 0.5v above the factory setting, I bridged the amp to give a solid 320+ watts per channel. Music playback was as expected a bit louder than the other 2 amps, more suprising though was that the amp sounded less clear than the other 2. A quick inspection of the settings, and I found that I was using the High Pass filter. With the HP filter defeated, the XXK put on a serious concert with clarity that matched the Audison.
One funny thing I found while I was doing setup work for this test: With all the amps powered up, only the Audison got warm. The Arc and Treo amps remained cold to the touch. Under use, the Audison seemed to put out the most heat followed by the XXK, and then the Treo amp. I think the centerally mounted cooling fans on the bottom of both the Arc and Treo amps makes a bigger difference than the semi-external fan kit I have installed on the Audison.
Next, I got a bit power hungry and bridged the two Treo amps to give 700w into 4 ohms. Again, with the gain settings on mininum, the music level was full of impact and slam. I love power...and these amps have it in spades. Just for reference, I tried enabling both the high pass filter, and the sub sonic filters on each amp. A predictable result, the music sounded less clear and dynamic, although I could turn the gains up on the amps a little bit without worry.
Content that all the amps sounded good, I moved on to testing the drivers I intend to use. I couldn't resist putting the Audiom 6WMs on the bridged Treos, and boy did they sing with music. Then I fired up the LMS computer, and found a really remarkable thing: The Audiom mids play a LOT higher than the spec sheet from Focal shows. In fact, the difference in frequency response is so great, that I have to question whether the spec sheet that Focal releases is for another driver. (It really is that far off) These mids play past 5khz with ease, but the bottom end isn't that great. I then started doing tone testing at varying power levels to try gauge the limits of the driver. Yes this driver will play 115 db free-air, but you don't want to push it too far past there. I elicited the "burned voicecoil" smell from one of the drivers when doing progressive level testing at 500 hz. On top of that, it now has a weird buzzing sound at all frequencies which means I probably toasted the driver. It did play VERY loud prior to that...so I'm hopeful I can get find a replacement. More carnage.
Next I hooked up a Focal 21V2 sub. These are most certainly subwoofers, as they didn't like to play midbass signals above 100hz with clarity or authority. Again, I think I roasted a voicecoil a little bit, but the sub survived. These Treo amps bridged are brutal, dishing out more current than these 8s have ever seen before. I thought I was rough on them before with the Audison VRx 1.500 putting out 500w to each driver. Apparently that was probably their limit...
So in conclusion: I need a bigger and better suited midbass, and I need to find at least 1 more Audiom 6WM.
I'll post some pictures of the new Treo amps later...I'm really starting to like em!
Well time flies when you're having fun...and I was having a grand old time at the shop until I noticed the time on my cell phone. (The computer times are all wacked) One could call my session "progress", but it was more like a carnage festival!
First, I found that my Alpine 7996 deck which has been sitting on a shelf for 3+ years doesn't have a working volume control. It's either full volume, or nothing when turning the volume between "0" and "1". Secondly, I fired up the PXA-H900 and found that the display screen is mysteriously blank. I tried reseting the H900...but the same result. So with the H900 down, I was left with only a full volume source unit for music testing.
The music test was more or less a session to get aquainted with the amps. I used a pair of home theater speakers with quick disconnects at the amps to switch things up. One thing is for sure, the "smallest" amp in the test had *****...and things just got stupid loud from there....
Here's a rundown on the amps I had assembled:
Arc Audio XXK 4150 - 4 X 100w @ 4 ohm
Audison VRx 2.400 - 2 X 270w @ 4 ohm
Treo SSX 200.2 - 2 X 200w @ 4 ohm
First up, I ran the Audison which had lots of oomph right out of the gate. Then I switched to one of the Treo amps (I have 2 of them) which was suprisingly close in level and clarity. I even ran the left speaker off the Audison and the right off the Treo, which resulted in some decent music playback. Both amps were set at the minimum gain setting, which was still pretty loud.
Next, I busted open the XXK 4150 to set the rail voltage down for bridging. (I have previously adjust it to give maximum voltage across 4 channels at 4 ohms) With the rail voltage set 0.5v above the factory setting, I bridged the amp to give a solid 320+ watts per channel. Music playback was as expected a bit louder than the other 2 amps, more suprising though was that the amp sounded less clear than the other 2. A quick inspection of the settings, and I found that I was using the High Pass filter. With the HP filter defeated, the XXK put on a serious concert with clarity that matched the Audison.
One funny thing I found while I was doing setup work for this test: With all the amps powered up, only the Audison got warm. The Arc and Treo amps remained cold to the touch. Under use, the Audison seemed to put out the most heat followed by the XXK, and then the Treo amp. I think the centerally mounted cooling fans on the bottom of both the Arc and Treo amps makes a bigger difference than the semi-external fan kit I have installed on the Audison.
Next, I got a bit power hungry and bridged the two Treo amps to give 700w into 4 ohms. Again, with the gain settings on mininum, the music level was full of impact and slam. I love power...and these amps have it in spades. Just for reference, I tried enabling both the high pass filter, and the sub sonic filters on each amp. A predictable result, the music sounded less clear and dynamic, although I could turn the gains up on the amps a little bit without worry.
Content that all the amps sounded good, I moved on to testing the drivers I intend to use. I couldn't resist putting the Audiom 6WMs on the bridged Treos, and boy did they sing with music. Then I fired up the LMS computer, and found a really remarkable thing: The Audiom mids play a LOT higher than the spec sheet from Focal shows. In fact, the difference in frequency response is so great, that I have to question whether the spec sheet that Focal releases is for another driver. (It really is that far off) These mids play past 5khz with ease, but the bottom end isn't that great. I then started doing tone testing at varying power levels to try gauge the limits of the driver. Yes this driver will play 115 db free-air, but you don't want to push it too far past there. I elicited the "burned voicecoil" smell from one of the drivers when doing progressive level testing at 500 hz. On top of that, it now has a weird buzzing sound at all frequencies which means I probably toasted the driver. It did play VERY loud prior to that...so I'm hopeful I can get find a replacement. More carnage.
Next I hooked up a Focal 21V2 sub. These are most certainly subwoofers, as they didn't like to play midbass signals above 100hz with clarity or authority. Again, I think I roasted a voicecoil a little bit, but the sub survived. These Treo amps bridged are brutal, dishing out more current than these 8s have ever seen before. I thought I was rough on them before with the Audison VRx 1.500 putting out 500w to each driver. Apparently that was probably their limit...
So in conclusion: I need a bigger and better suited midbass, and I need to find at least 1 more Audiom 6WM.
I'll post some pictures of the new Treo amps later...I'm really starting to like em!
Last edited by PEI330Ci; Feb 12, 2009 at 11:15 PM.
Thread Starter
1000 Watt CAFz'r
Joined: Oct 2003
Posts: 1,783
I can still smell the toasty voice coils...and I'm at home!!!
Fun.

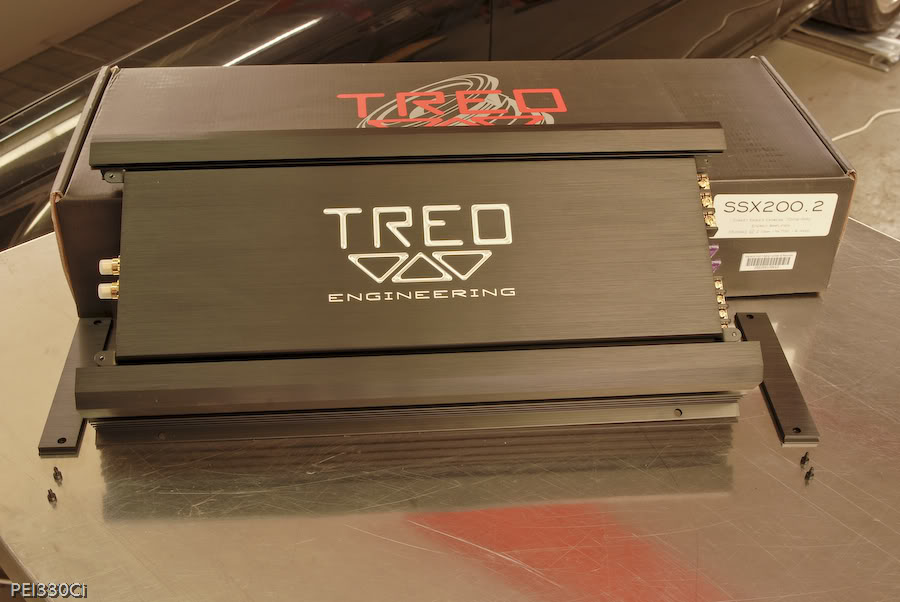

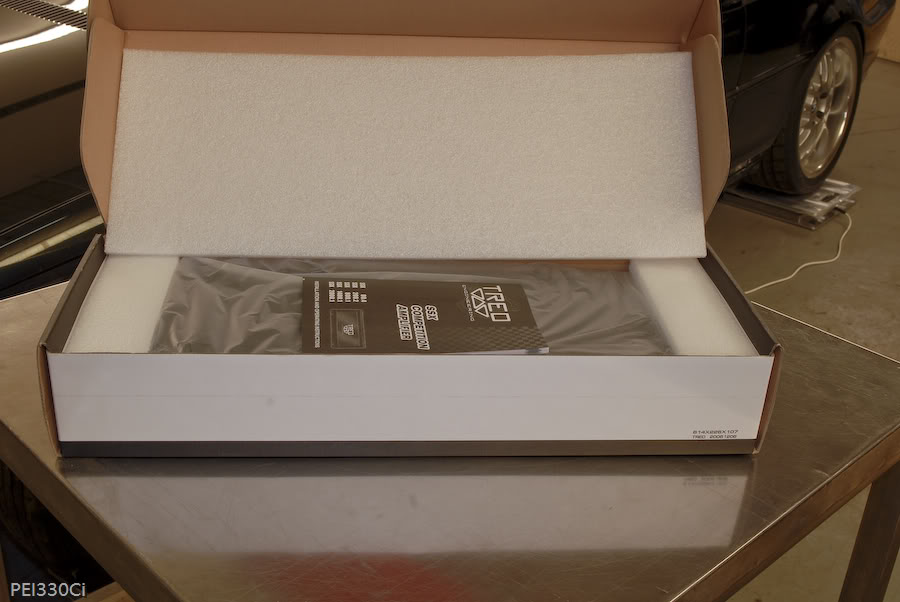

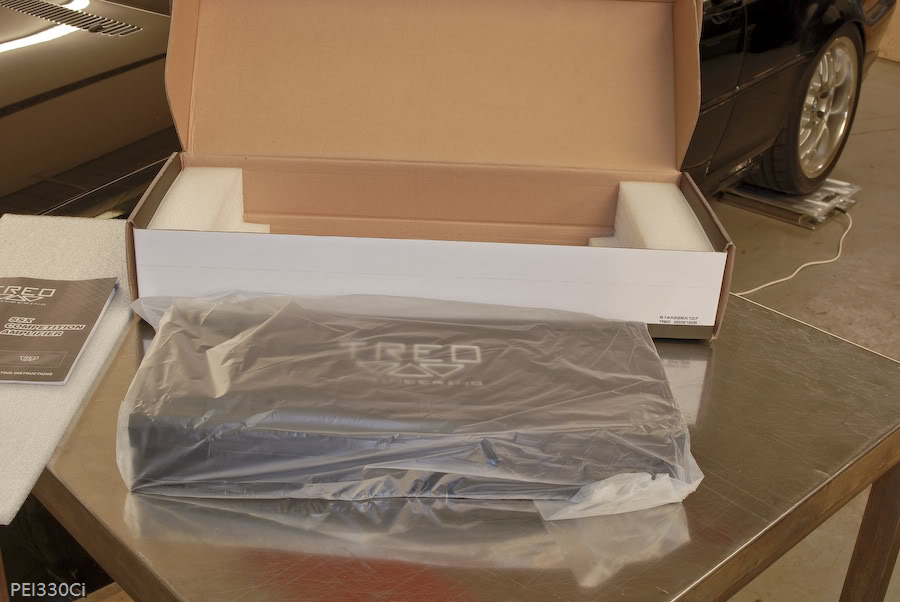

Some pics from unpacking the Treo amps:

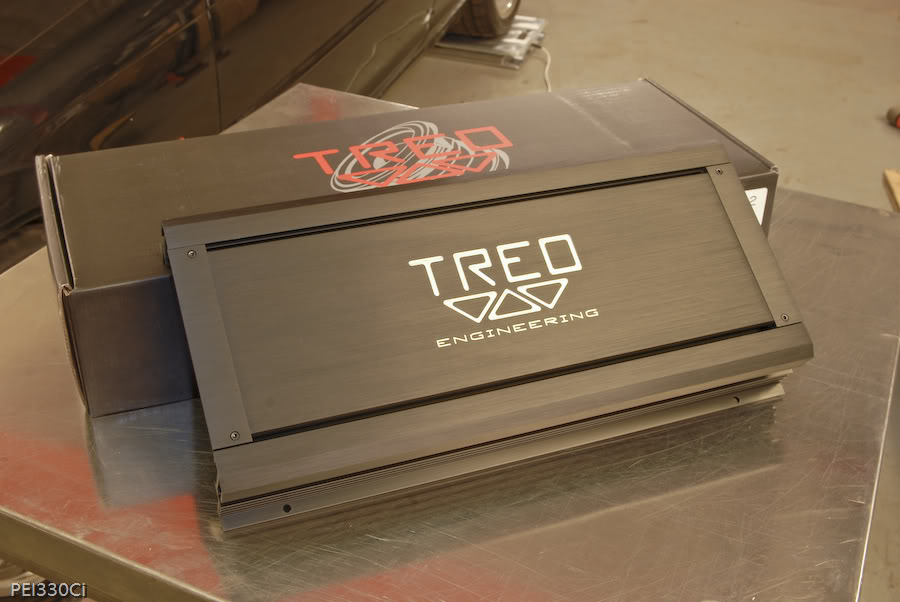

I love the aluminum finish...reminds me of a Krell.

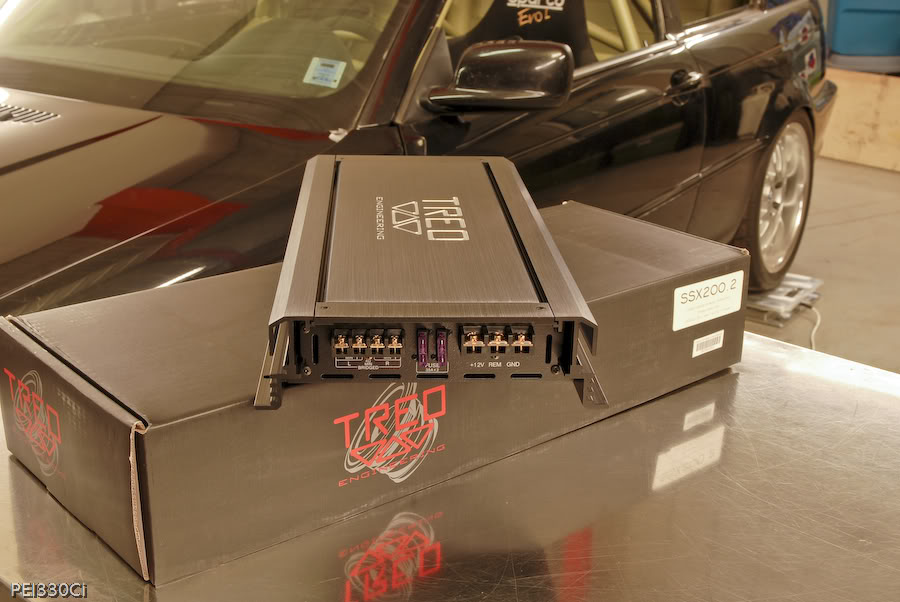

Connections:

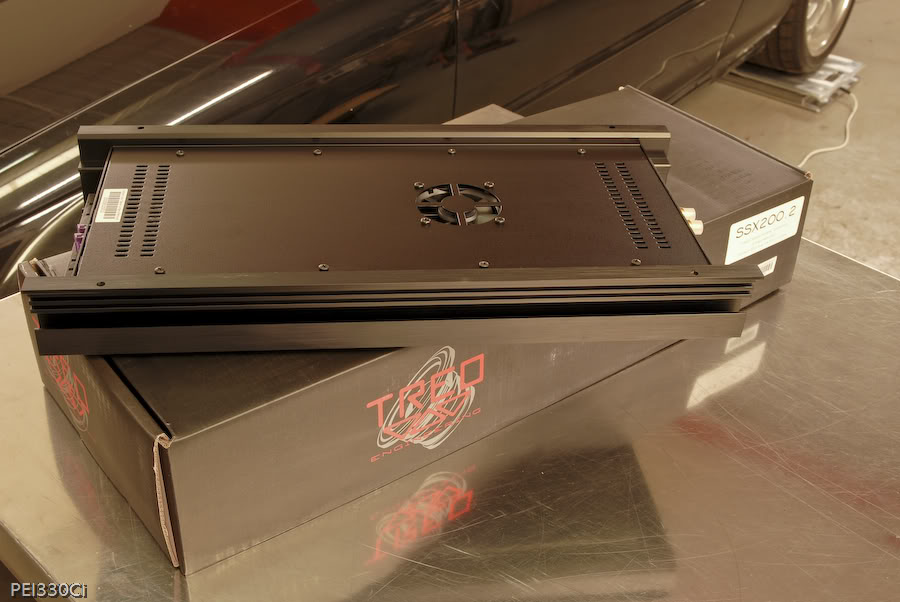

Cooling fan:

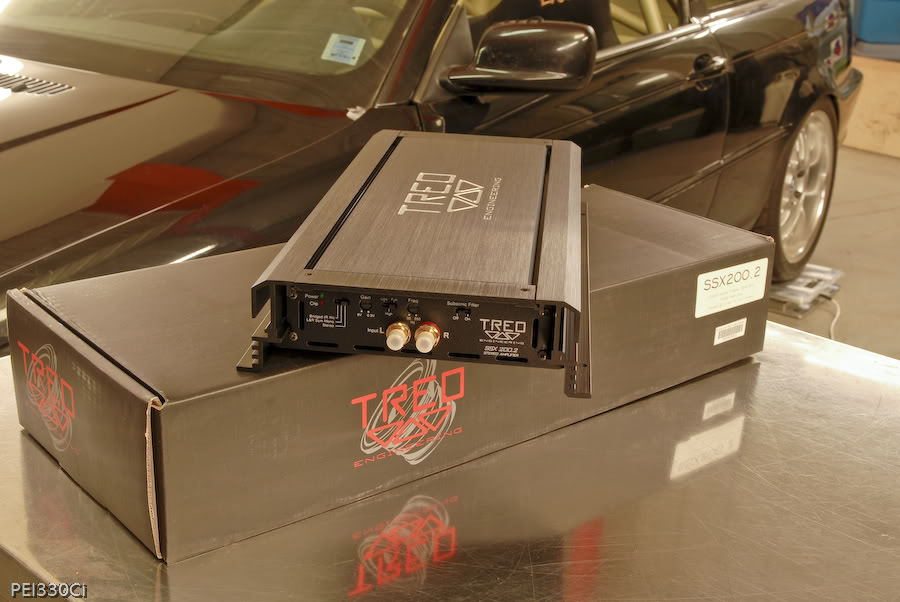

Machined aluminum end plates slide out to give access to connections:

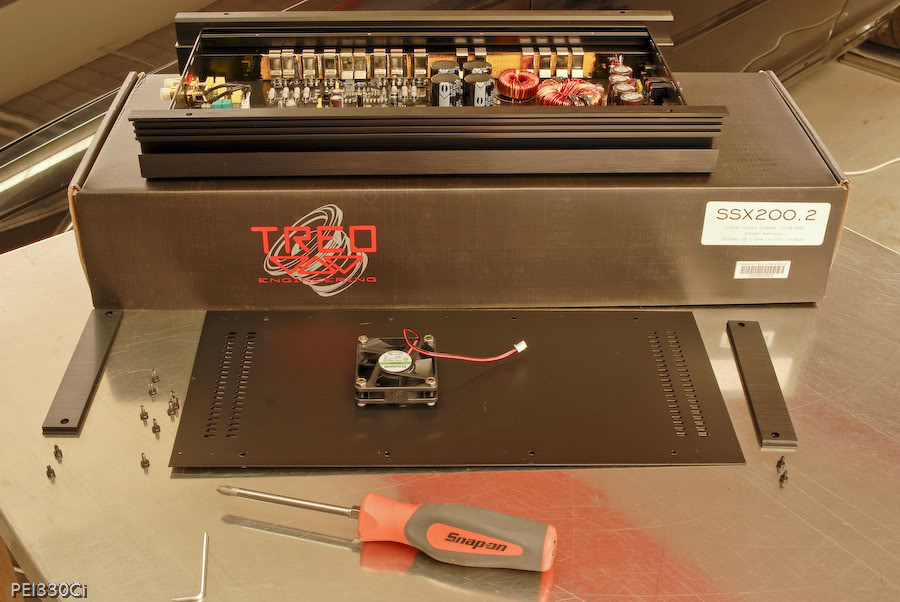

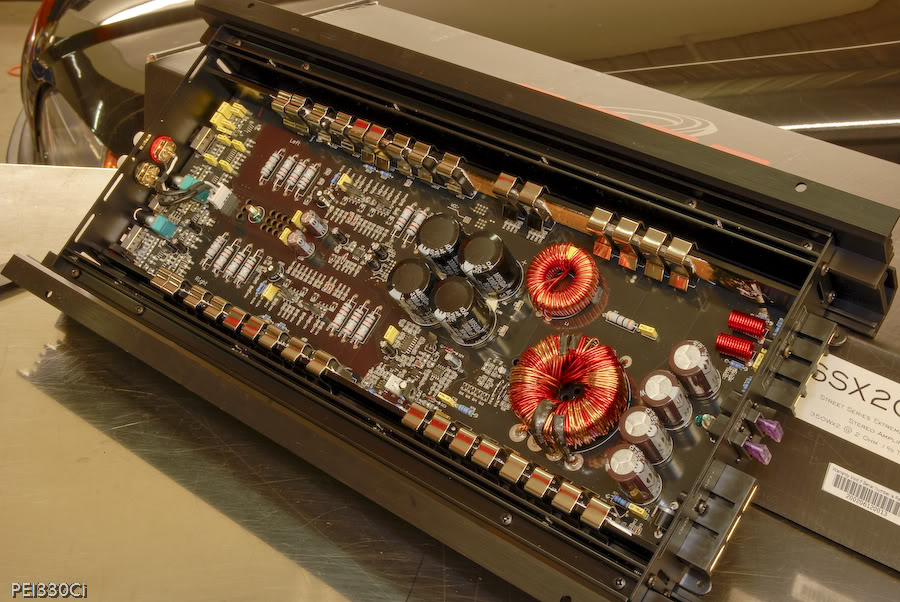

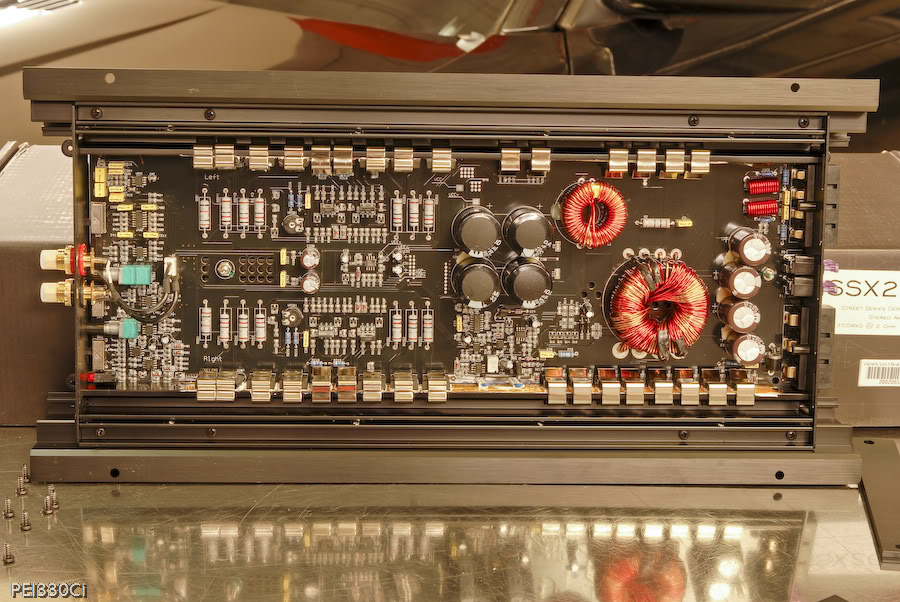

...and I couldn't resist taking it apart:
Overall a really solid chassis. My only complaint at this time is that it doesn't accept 4awg wire directly, you have to use a spade lug to connect to the power terminals with that size wire. The RCA connections are SOLID...probably the most beefy pieces I've seen on a car amp. I dare say if you used a set of WBT connectors locked onto them, you could swing the amp around like a weapon without worry. Solid piece.

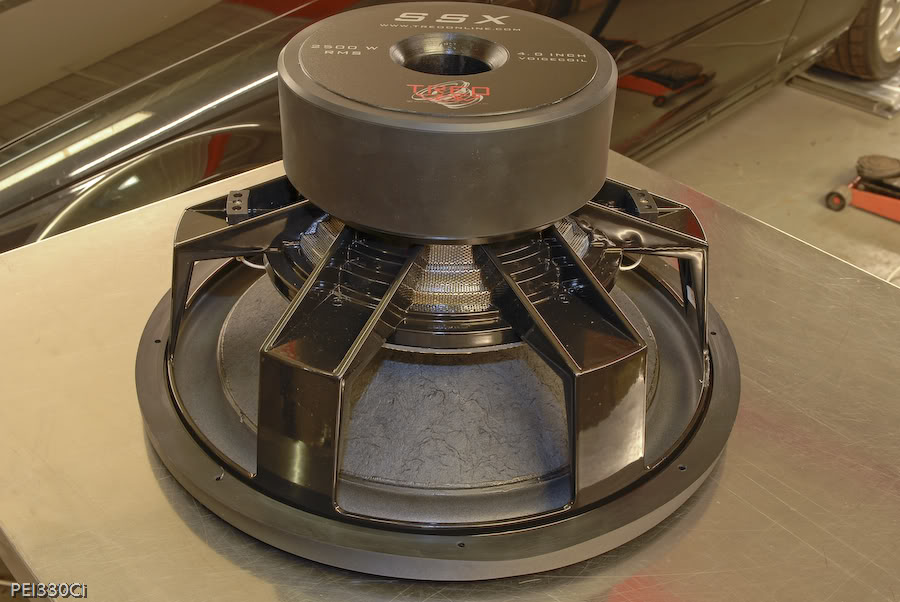

I also started breaking in one of these monsters:
