General SQ General discussion of Sound Quality related issues.

Perpendicular Planes: Tweeter.

Old 07-23-2012, 01:17 AM
  #1
50 Watt CAFz'r
Thread Starter

Join Date: Oct 2006
Posts: 217
Perpendicular Planes: Tweeter.

Has anyone ever run a tweeter perpendicular to their mids? If so was there a noticeable separation effect? I'm going to try it either way, but I'm curious because I couldn't find any discussion of this anywhere online.

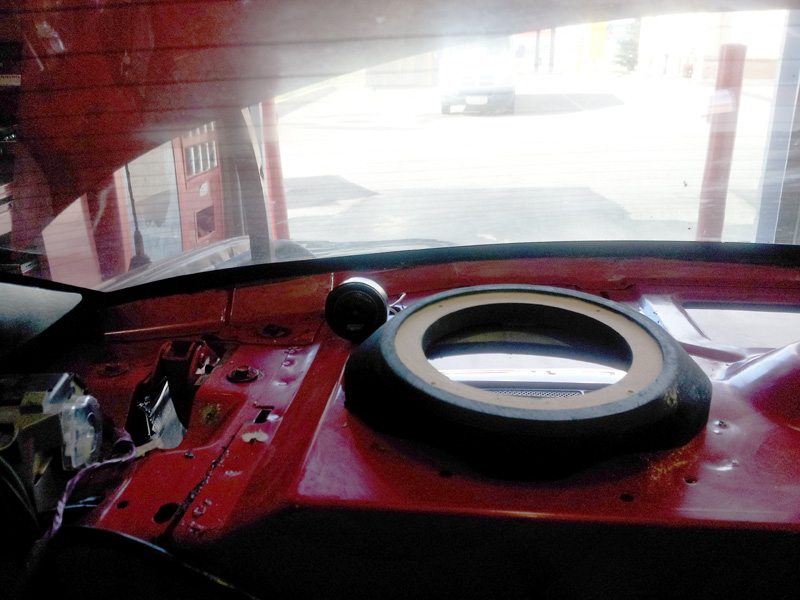

Attached Thumbnails Perpendicular Planes: Tweeter.-2012-07-21%252017.09.51sm.jpg
BradSk88 is offline
Old 07-23-2012, 02:17 PM
  #2
Administrator

Dukk's Avatar

Join Date: Feb 2006
Posts: 16,855
Any time drivers are not mounted on the same plane and directed at your ears there will be some form of interference and reflection, the results of which are never going to improve linearity.

The counterpoint will be whether having the tweeter directly facing your ears is more beneficial than the mid being so off axis is detrimental. Since it seems you are stuck with the mids being that way, I say go for it.
Dukk is offline
Old 07-23-2012, 07:36 PM
  #3
Moderator

iTrader: (2)

wasted911's Avatar

Join Date: Nov 2005
Posts: 1,285
rear fill, Brad? really?
wasted911 is offline
Old 07-24-2012, 02:04 PM
  #4
50 Watt CAFz'r
Thread Starter

Join Date: Oct 2006
Posts: 217
Originally Posted by wasted911 View Post
rear fill, Brad? really?
lol

I had some speakers laying around and it just bugged me that I had 5 unused channels tucked away.

Originally Posted by Dukk
Any time drivers are not mounted on the same plane and directed at your ears there will be some form of interference and reflection, the results of which are never going to improve linearity.

The counterpoint will be whether having the tweeter directly facing your ears is more beneficial than the mid being so off axis is detrimental. Since it seems you are stuck with the mids being that way, I say go for it.
That was my fear. I've always hated the idea of how unpredictable window reflection is (as if anything in a car interior is predictable).

That's why I didn't make the tweeter mounts especially solid. If it's bad I'll just plop em on the same axis and fire at the window.
BradSk88 is offline
Old 07-24-2012, 03:59 PM
  #5
50 Watt CAFz'r

Join Date: Jun 2011
Posts: 320
On a seperate but related note, do you really WANT tweeter for rear fill? I really like some nice mid/midbass fro rear fill, but find tweets bring much of the sound stage too far back.
My $.02
audio1der is offline
Old 07-25-2012, 01:09 AM
  #6
50 Watt CAFz'r
Thread Starter

Join Date: Oct 2006
Posts: 217
Originally Posted by audio1der View Post
On a seperate but related note, do you really WANT tweeter for rear fill? I really like some nice mid/midbass fro rear fill, but find tweets bring much of the sound stage too far back.
My $.02
I'll probably be using DTS Neo:6 for real fill.
BradSk88 is offline
Old 07-29-2012, 08:10 PM
  #7
Goalie Man

goalie 35's Avatar

Join Date: May 2003
Posts: 1,412
if your gonna run that set up. you should power it with some lear jet amps.. killa..... thought you wood like that dukk!! oh and nothing but helix turned up to 11 on your targa cassette deck... lol.... serious.. rear fill is only usefull for dvd playback.. not really benificial for sq.. one car has run rear fill in the past 10 yrs.. if there are more i havent seen them, and i know most of the boys... just sayn.. better use would be to keep them as spares.
goalie 35 is offline
